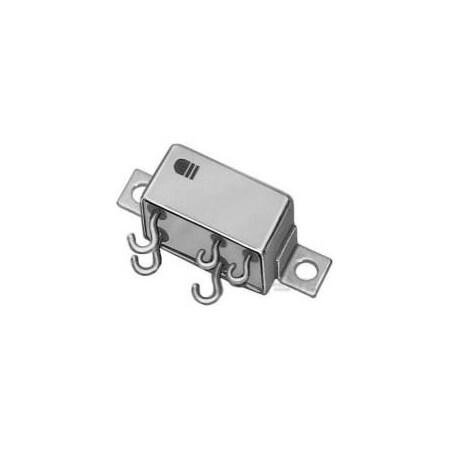

TE Raychem CAW-1C-24B

B07NQTK1SV

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Actuating SystemDC
Base Product NumberCAW-1
CategoryRelays
Coil Current37.9 mA
Coil Insulation-
Coil LatchingWithout
Coil Magnetic SystemNon-Polarized, Monostab.
Coil Polarity Protectio.Without
Coil Power MeasurementMilliwatts
Coil Power Rating (DC)1003
Coil Resistance700, 700 Ohms, 700 ?
Coil Suppression DiodeWithout
Coil TypeNon Latching, Non-Polar.
Coil Voltage26.5VDC
Coil Voltage Rating26.5
Coil Volts26.5V DC
Contact Arrangement1 Form C, SPDT, 1 C/O
Contact Current Rating10
Contact FormSPDT (1 Form C)
Contact Form - Relay1 Form C, SPDT, 1 C/O
Contact Material-
Contact Rating10A
Contact Rating (Current)10 A
DescriptionRELAY GEN PURPOSE SPDT .
Detailed DescriptionGeneral Purpose Relay S.
Digi-Key Part NumberA139075-ND
Electrical Connection -.PC Pins
Enclosure TypeHermetically Sealed
FeaturesHermetically Sealed Enc.
Input Voltage26.5
Item - RelayMilitary/Aerospace High.
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.CAW-1C-24B
Manufacturer Standard L.23 Weeks
MfrTE Connectivity Aerospa.
MOSFET DriverWithout
Mounting TypePlain Case, Chassis Mou.
Must Operate Voltage13.5 VDC
Must Release Voltage1.5 VDC
Operating Temp. Range-65 to 125?C
Operating Temperature-65?C ~ 125?C
Operating Temperature R.-65 ? 125
PackageBulk
Package Quantity1
Power Consumption - Rel.1003 mW
Product StatusActive
Product TypeRelay
Relay TypeMilitary/Aerospace High.
Seal RatingSealed - Hermetically
Series-
Shock100G's, 6ms
Switching Voltage28VDC - Nom
Termination StyleSolder Hook
Termination TypePC Pins
Transistor DriverWithout
Vibration20G's, 10 ? 2000Hz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key6064026639.89160TE Connectivity Aerospace, Defense and Marine639.89 @ 1
WaldomTE CONNECTIVITY CII BRAND CAW-1C-24B751.7611TE CONNECTIVITY/ CII BRAND751.76 @ 1
Onlinecomponents.comCAW-1C-24B841.4611TE Connectivity / CII Brand841.46 @ 1
TE Connectivity1617087-1896.31In StockTE Connectivity (TE)896.3 @ 1
thumbzoomZoroG9058660501192.991In StockTe Connectivity1192.99 @ 1
