TE Connectivity 2081570-2

B096T3Q6CF

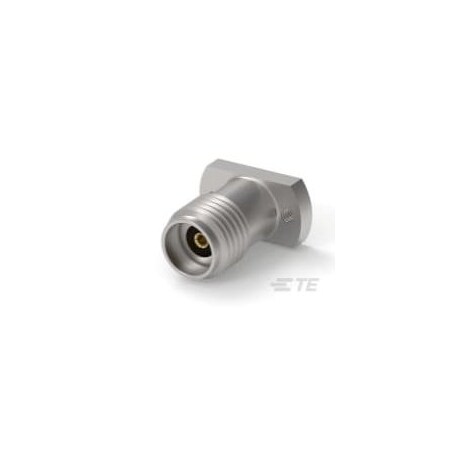

Conn 2.92mm 0Hz to 40GHz 50Ohm ST Flange Mount RCP Gold Bag

Conn 2.92mm 0Hz to 40GHz 50Ohm ST Flange Mount RCP Gold Bagzoom

Attributes

Key Value
Base Product Number2081570
Body FinishPassivated, -
Body MaterialStainless Steel
Cable Connector Orienta.Straight
Cable Group-
CategoryConnectors, Interconnec.
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Circuit ApplicationPower & Signal
ConnectorPrinted Circuit Board
Connector Style2.92mm
Connector SystemCable-to-Board
Connector TypeJack, Female Socket
Contact TerminationCompression
Country of Origin (subj.China
Dielectric MaterialPolyetherimide (PEI)
EMIPCB Ground
Fastening TypeThreaded
Features-
Frequency - Max40 GHz
Height Above PC Board9.6?mm?[?.378?in?]
Housing Color-
Impedance50Ohm, 50
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrTE Connectivity AMP Con.
Mounting FeatureFlange
Mounting TypeSurface Mount
Number of Coaxial Conta.1
Number of Ports1
Number of Positions1
Operating Frequency40
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageBag
Packaging MethodBag
Part StatusActive
PCB Mount OrientationVertical
Port ConfigurationSingle Port
RF Connector Center Con.Beryllium Copper
RF Connector Center Con.Gold
RF Connector Coupling M.Screw
RF Connector StyleJack
RF InterfaceOS 2.9
SealableNo
Series-
Shield TerminationScrew
Voltage Rating335 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark41AH535324.91197TE CONNECTIVITY24.91 @ 1
WaldomTE CONNECTIVITY AMP BRAND 2081570-259.11100TE CONNECTIVITY/AMP BRAND59.1 @ 1
Mouser571-2081570-286.21100TE Connectivity86.2 @ 1
thumbzoomZoroG50104892894.87100In Stock80Te Connectivity94.87 @ 100
Digi-Key10494775101.0161046TE Connectivity AMP Connectors101.016 @ 1
Onlinecomponents.com2081570-2146.57120TE Connectivity146.57 @ 1
