Deutsch DMC-M 08-16 ANE

mpnDMC-M 08-16 ANE
brandname: TE Connectivity (TE)
manufacturername: TE Connectivity (TE)

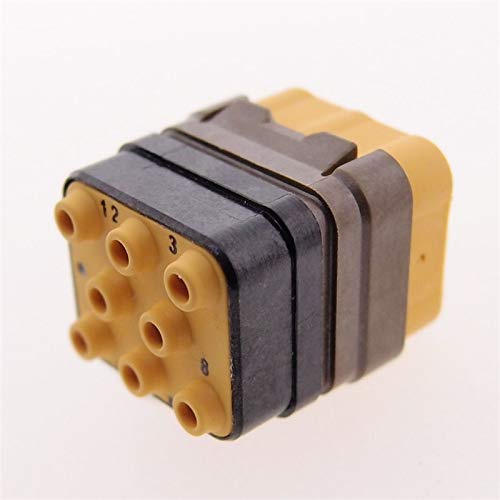

Deutsch Connector

Deutsch Connector

zoom

Brand: Deutsch
PartNumber: DMC-M 08-16 ANE
Manufacturer: Deutsch
Label: Deutsch

Attributes

Key	Value
Boxmount	No
Centerline (Pitch)	25.4?mm?[?1?in?]
Circuit Application	Power & Signal & Data
Connector	Wire & Cable
Connector Type	Connector Assembly
Contact Current Rating .	13
Contact Layout	Matrix
Contact Plating Material	Gold Over Nickel
Contact Retention	With
Contact Retention Type	Retention Clip
Contact Size	16
Contact Style	Crimp
Contact Type	Without Male Contact
Housing Material	Aluminum
Keying	N
Module Material	Composite
Number of Cavities	8
Number of Columns	5
Number of Loaded Positi.	0
Number of Positions	8
Number of Power Positio.	0
Number of Rows	3
Number of Signal Positi.	8
Operating Temperature R.	-65 ? 175??C?[?-85 ? 39.
Operating Voltage	125
Prewired	No
Product Type	Pin Insert Module
Row-to-Row Spacing	16?mm?[?.6299?in?]
Sealable	Yes
Shape	Rectangular
Strain Relief	Without
Termination Method to W.	Crimp
Wire Size	2 ? .6, 14 ? 20
