TE Connectivity 446852-8

B010IIAYMM

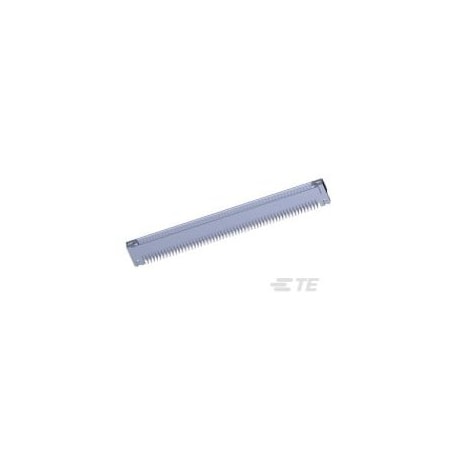

TE Connectivity Part Number 446852-8

TE Connectivity Part Number 446852-8zoom

Attributes

Key Value
Applications-
Base Product Number446852
CategoryConnectors, Interconnec.
ColorBrown
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thicknes.50.0?in (1.27?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.209" (5.32mm)
Contact Length - Post0.140" (3.56mm)
Contact MaterialBrass
Contact Plating Thickne.50 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating (Amps)-
DescriptionCONN HEADER BRD EDGE 24.
Detailed DescriptionConnector Header Board .
Digi-Key Part Number446852-8-ND
Fastening TypePush-Pull
FeaturesSealable, Mating Guide,.
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBrown
Insulation Height-
Insulation MaterialPolyphenylene Sulfide (.
ItemPCB Mount Header
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.446852-8
Manufacturer Standard L.34 Weeks
Mated Stacking Heights-
MaterialPolyphenylene Sulfide
Material Flammability R.-
MfrTE Connectivity Aerospa.
Mounting TypeBoard Edge, Through Hol.
Number of Contacts240
Number of Positions240
Number of Positions Loa.All
Number of Rows3
Operating Temperature-
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesMilitary, MIL-DTL-55302.
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 446852-8421.431244TE CONNECTIVITY/AMP BRAND421.43 @ 1
Allied ElectronicsE5181263436.864100In StockTE Connectivity436.864 @ 100
Newark18H0145539.56100In StockAMP - TE CONNECTIVITY539.56 @ 100
thumbzoomZoroG205910392557.991In StockTe Connectivity557.99 @ 1
thumbzoomDigi-Key6069897573.781244TE Connectivity Aerospace, Defense and Marine573.78 @ 1
