TE Connectivity 4-1825136-8

B010IIP34G

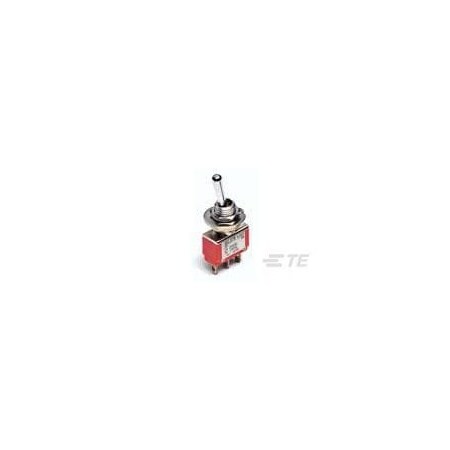

TE Connectivity Part Number 4-1825136-8

TE Connectivity Part Number 4-1825136-8zoom

Attributes

Key Value
ActuatorBat
Actuator Length10.41mm
Actuator MaterialBrass, Nickel Plated
Actuator TypeStandard Round, Bat
Alternate Mfr Part Numb.4-1825136-8
Alternate Part No.506-A101SYZB04
BrandTE Connectivity / Alcos.
Bushing Size1/4-40
Bushing Thread1/4-40
CircuitSPDT
Contact FormSPDT
Contact PlatingGold
Country of Origin (subj.United States
Current Rating (Amps)0.4VA (AC/DC)
Electrical Life6,000 Cycles
FeaturesEpoxy Sealed Terminals
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
ManufacturerTE Connectivity
Manufacturer Part No.A101SYZB04
MfrTE Connectivity ALCOSWI.
Mounting StyleThrough Hole
Mounting TypePanel Mount, Bushing
Number of Poles1
Number of Positions2
Operating Temperature-30?C ~ 85?C
OperationOn-On
Panel Cutout DimensionsCircular - 6.35mm Dia
Part # Aliases4-1825136-8
Part StatusActive
Power Rating0.4 VA
Product CategoryToggle Switches
SeriesA Series, Gemini A
Switch FunctionOn-On, ON - ON
Terminal SealSealed
TerminationSolder Lugs
Termination StyleSolder Lug
TradenameGEMINI
TypeToggle
Voltage Rating - AC20 V
Voltage Rating - DC20 V
Voltage Rating AC20 V
Voltage Rating DC20 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 4-1825136-84.0115139TE CONNECTIVITY/AMP BRAND4.01 @ 15
Onlinecomponents.comA101SYZB044.071049TE Connectivity / AMP4.07 @ 10
us.rs-online.com701560244.1150024TE Connectivity4.11 @ 500
Arrow4-1825136-84.2021200TE Connectivity / AMP4.202 @ 1
RS Delivers710-96715.448122TE Connectivity5.448 @ 1
thumbzoomswatee.comA101SYZB045.81111TE Connectivity5.8 @ 1
Newark36AC44926.67139AMP - TE CONNECTIVITY6.67 @ 1
thumbzoomZoroG8010098031377.5250In Stock115Te Connectivity1377.5 @ 250
