mpn:
manufacturer:
MPN:
Weight:
0.01
Weight:
0.01 LB
Preferred Price:
4.01
Price:
4.01
Min Simple Price:
1.468
Absolute Min Price:
3.22
Min Price:
3.22
Dimensions:
[1.0, 1.0, 1.0]
qty:
61
simpleSku:
NjI5OA:::103735-5
sku:
NjI5OA::6A:103735-5@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Base Product Number | 103735 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connection Material, Contact Material | Brass |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Header |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30.0?in (0.76?m) |
| Contact Finish Thickness - Post | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Plating Thickness | 30 ?in |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | 3A |

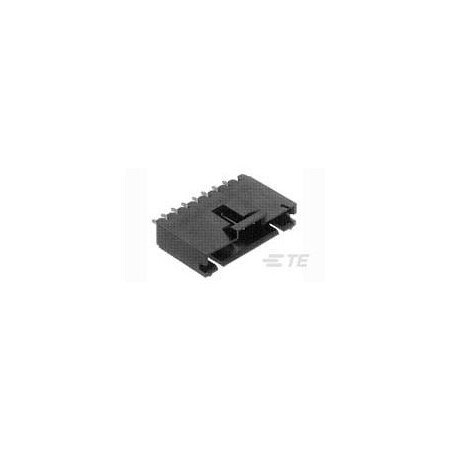

| Description | CONN HEADER VERT 6POS 2.54MM |
| Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Digi-Key Part Number | A28535-ND |
| Fastening Type | Latch Holder |
| Features | Shrouded, Keying Slot |
| Flammability Rating | UL 94 V-0 |
| For Use With | Receptacle Housing Assembly |
| Height | 13.59 mm |
| Hole Center to Center | 2.54 mm |
| Ingress Protection, Mated Stacking Heights, Row Spacing - Mating, Voltage Rating | - |
| Insulation Height | 0.535" (13.60mm) |
| Insulation Material, Material | Thermoplastic |
| Item | PCB Mount Header |
| Length | 0.7 in |
| Manufacturer Product Number | 103735-5 |
| Manufacturer Standard Lead Time | 18 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 105?C |
| Mounting Type | Through Hole |
| Number of Contacts, Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows, Package Quantity | 1 |
| Operating Temperature | -65?C ~ 105?C |
| Overall Contact Length | 0.545" (13.84mm) |
| Package | Tube |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Series | AMPMODU MTE |
| Shrouding | Shrouded - 4 Wall |
| Standards | UL E28476; CSA LR7189 |
| Style | Board to Board or Cable |
| Terminal Finish | Matte Tin-Lead Plated |
| Terminal Type | Insulation Displacement Crimp |
| Termination | Solder |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 103735-5 | 1.468 | 19.3776 | 30 | 2201 | TE Connectivity | 1.468 @ Qty: 2+ | |||
 | Newark | 52F5846 | 1.63 | 745.236 | 1140 | 2 | AMP - TE CONNECTIVITY | 1.63 @ Qty: 1140+ | ||
| Mouser | 571-1037355 | 1.67 | 2.672 | 1 | 33 | TE Connectivity | 1.67 @ Qty: 2+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 103735-5 | 1.73 | 209.676 | 300 | 94 | TE CONNECTIVITY/AMP BRAND | 1.73 @ Qty: 300+ | |||
 | Digi-Key | 298603 | 2.316 | 3.7056 | 1 | 121 | TE Connectivity AMP Connectors | 2.316 @ Qty: 2+ | ||
| AmazonTP | B07KWHP7WJ | 47.51 | 76.016 | 1 | 2 | 1 | TE Connectivity / AMP Brand | 47.51 @ Qty: 2+ | ||
 | Zoro | G100937609 | 123.0 | 196.8 | 1 | 2 | Te Connectivity | 123.0 @ Qty: 2+ |
