TE Connectivity 154717-4

B00FRBUIAO

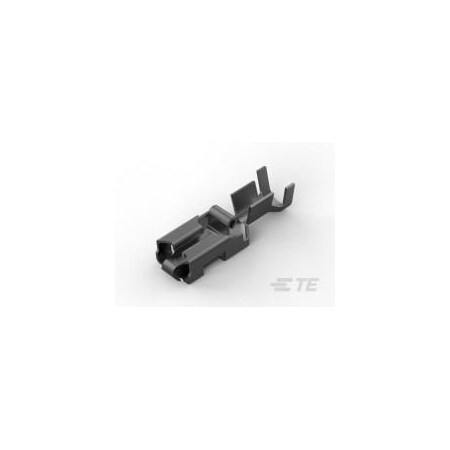

T-E Connectivity 154717-4 (1500 pcs) POSITIVE LOK RECEPTACLE

T-E Connectivity 154717-4 (1500 pcs) POSITIVE LOK RECEPTACLEzoom

Attributes

Key Value
Accepts Wire Insulation.3.6 ? 4.3?mm?[?.141 ? ..
Alternate Parts154717
Barrel TypeOpen
Base Product Number154717
CategoryConnectors, Interconnec.
Color-, Phosphor Bronze
CommentFLK-Wire: Normal Wire
Connection CapacitySingle
Contact Base MaterialPhosphor Bronze
Contact FinishTin, 0.142"" ~ 0.169"" .
Contact MaterialTin, Phosphor Bronze
Country of Origin (subj.Italy
Crimp TypeF-Crimp
DescriptionCONN QC RCPT 11-13.5AWG.
Detailed Description0.250" (6.35mm) Quick C.
Digi-Key Part NumberA99652TR-ND - Tape & Re.
Extraction Force.7 ? 10.2, 7 ? 100
Features-
Fully InsulatedNo
GenderFemale, 0.250"" (6.35mm)
Insertion ForceLow
InsulatedNo
InsulationNon-Insulated, Free Han.
Insulation Diameter0.142" ~ 0.169" (3.61mm.
Lead Free Status / RoHS.RoHS Compliant
Length - OverallCrimp, 0.886" (22.50mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Part Number154717-4
Manufacturer Product Nu.154717-4
Manufacturer Standard L.10 Weeks
Mating Retention TypeDimple
Mating Tab Thickness.81?mm?[?.032?in?]
Mating Tab Width6.35?mm?[?.25?in?]
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Operating Temperature R.-40 ? 110??C?[?-40 ? 23.
Overall Length22.5?mm?[?.886?in?]
PackageActive, Tape & Reel (TR)
PackagingReel
Packaging MethodStrip/Reel
Packaging Quantity1500
Part StatusStandard
Plating MaterialTin
Product StatusActive
Receptacle Terminal Sto..41?mm?[?.016?in?]
SealableNo
SeriesTape & Reel (TR), Mark I
Standard Package1,500
Tab Length-, 0.886"" (22.50mm)
Tab Thickness0.032" (0.81mm), -
Tab Width0.250" (6.35mm), 0.032".
TerminalReceptacle
Terminal OrientationStraight
Terminal TypeReceptacle, Female, Sta.
Terminates ToWire & Cable
Termination11-13.5 AWG, Crimp
UL RatingRecognized
Wire GaugeNon-Insulated, 11-13.5 .
Wire Insulation SupportWith
Wire Size2.62 ? 4.17, 13 ? 11
Wire StopNo
Wire/Cable TypeFLK

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com154717-40.16715004950TE Connectivity0.167 @ 1
HotendaH16450070.17009152500TE Connectivity AMP Connectors0.17009 @ 1
iodParts154717-40.19415001500TE Connectivity0.194 @ 1500
Newark11H71330.2266000442AMP - TE CONNECTIVITY0.226 @ 6000
Future Electronics60250890.2526000476TE Connectivity0.252 @ 6000
thumbzoomZoroG1009270680.311500442Te Connectivity0.31 @ 1500
TE Connectivity154717-40.39443124039TE Connectivity (TE)0.39443 @ 1
RS Delivers669-27470.417611700TE Connectivity0.4176 @ 1
thumbzoomDigi-Key28275040.4919184TE Connectivity AMP Connectors0.49 @ 1
AmazonTPB00FRBUIAO489.2914425T-E Connectivity489.29 @ 1
