TE Connectivity 1586842-8

B096T5W2MV

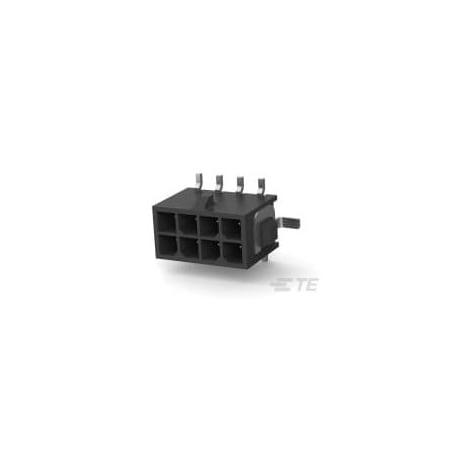

Conn Mate N Lock HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Tray

Conn Mate N Lock HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Trayzoom

Attributes

Key Value
ApplicationPower
Applications-
ColorBlack
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact Plating Thickne.2.54 ?m
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating5 A
Current Rating (Amps)5A
Fastening TypeLocking Ramp
FeaturesPick and Place, Solder .
Flammability RatingUL 94 V-0
For Use WithReceptacle Housing
Height9.24 mm
Hole Center to Center3 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.364" (9.25mm)
Insulation MaterialPolyamide (PA), Nylon
ItemHeader
Length0.506 in
Mated Stacking Heights-
MaterialHigh Temperature Nylon
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount
Number of Contacts8
Number of Positions8
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
Package Quantity1
Part Status-
Pitch - Mating0.118" (3.00mm)
Row Spacing - Mating0.118" (3.00mm)
ShroudingShrouded - 4 Wall
StandardsUL E28476; UL Recognized
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder
Voltage Rating250V
Width0.27 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1586842-80.917521350TE CONNECTIVITY/AMP BRAND0.9 @ 175
Newark41AJ31841.3217521350AMP - TE CONNECTIVITY1.32 @ 175
thumbzoomZoroG401040992225.751In StockTe Connectivity225.75 @ 1
