TE Raychem 1586869-1

B07NQTKZY7

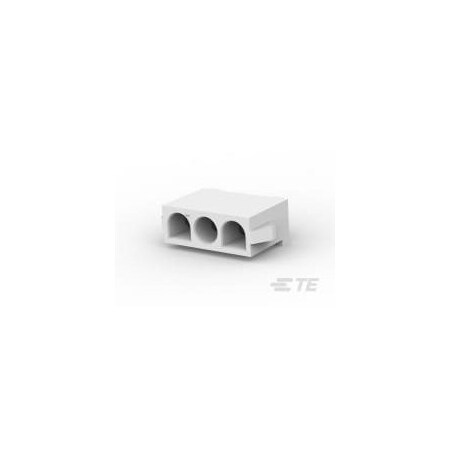

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationPower
Applications-
Base Product Number1586869
CategoryConnectors, Interconnec.
ColorNatural
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishPre-Tin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Post0.155" (3.94mm)
Contact MaterialPhosphor Bronze
Contact Plating Thickne.3.81 to 5.08 ?m
Contact ShapeCircular
Contact TypeSocket, Female Socket
Current Rating (Amps)-
DescriptionCONN HDR 3POS 0.25 TIN .
Detailed Description3 Position Header Conne.
Digi-Key Part NumberA107482-ND
Fastening TypeLocking Ramp
Features-
Flammability RatingUL 94 V-2
For Use WithUniversal MATE-N-LOK
Hole Center to Center6.35 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.580" (14.73mm)
Insulation MaterialPolyamide (PA), Nylon
ItemHeader
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1586869-1
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-2
Max. Temp.105?C
Max. Voltage600V AC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts3
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
PackageBulk
Package Quantity1
Pitch - Mating0.250" (6.35mm)
Product StatusActive
Row Spacing - Mating-
SeriesUniversal MATE-N-LOK
StandardsUL E28476; UL Recognized
StyleBoard to Cable/Wire
Terminal FinishPre-Tin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical1586869-10.6153120TE Connectivity / AMP0.61 @ 53
Newark97X57450.7886400126AMP - TE CONNECTIVITY0.788 @ 6400
WaldomTE CONNECTIVITY AMP BRAND 1586869-10.816400300TE CONNECTIVITY/AMP BRAND0.81 @ 6400
us.rs-online.com720005410.986400126TE Connectivity0.98 @ 6400
HotendaH14193541.151126TE Connectivity AMP Connectors1.15 @ 1
Mouser571-1586869-11.3116385TE Connectivity / AMP1.31 @ 1
thumbzoomZoroG5009380911.45100126Te Connectivity1.45 @ 100
thumbzoomDigi-Key402136313.58412847TE Connectivity AMP Connectors13.584 @ 1
