mpn:
manufacturer:
MPN:
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | UL Recognized ; UL Listed and CSA Certified |
| Alternate Part No. | 571-1658606-1 |
| Angle | Straight |
| Application | Commercial |
| Backset Spacing, Color, Contact Finish Thickness, Contact Form, Contact Material, Dielectric Material, Ingress Protection, Operating Temperature, Voltage Rating, Wire Gauge | - |
| Base Product Number | 1658606 |
| Brand | TE Connectivity / AMP |
| Cable Insulation Diameter | .81 ? .97?mm?[?.032 ? .038?in?] |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 1.38?mm?[?.054?in?] |
| Circuit Application, Contact Type, Shell Size, Connector Layout | Signal |
| Color, Voltage Rating | Black |
| Connector | Wire & Cable |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Style | Receptacle |
| Connector Style, Connector Type | Receptacle, Female Sockets |
| Connector Style, Part Status | D-Sub |
| Connector System | Cable-to-Cable |
| Connector Type, Number of Contacts, Number of Positions | 50 |
| Contact Base Material, Contact Material, Wire Gauge | Phosphor Bronze |
| Contact Current Rating (Max) | 1.25 |
| Contact Finish, Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Finish, Contact Plating, Shell Material, Finish | Gold |
| Contact Form, Dielectric Material, Housing Material | Thermoplastic |
| Contact Size | 20 |
| Contact Type, Mounting Type | Free Hanging (In-Line) |
| Contact Underplating Material | Nickel |
| Country of Origin (subject to change) | China |
| Current Rating | 1.25 A |
| Current Rating (Amps), Material Flammability Rating | 1.25A |
| Current Rating (Amps), Operating Temperature | -55?C ~ 105?C |

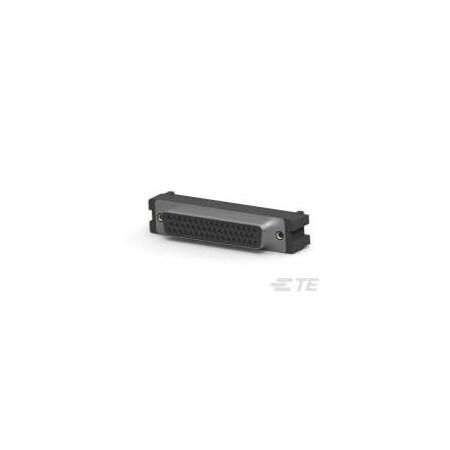

| Description | CONN D-SUB RCPT 50POS IDC |
| Detailed Description | 50 Position D-Sub Receptacle, Female Sockets Connector |
| Digi-Key Part Number | AFR50B-ND |
| Enclosure | Without |
| Features, Shell Material, Finish | Steel, Tin Plated |
| Features, Termination | Feed Through |
| Flange Feature, Mounting Type | Housing/Shell (4-40) |
| Flange Feature, Termination | IDC, Ribbon Cable |
| Gender | Female |
| Ingress Protection, Material Flammability Rating, Standards | UL94 V-0 |
| Insert Material, Shell Material | Steel |
| Insulation Diameter | 0.032-0.038 " |
| Manufacturer | TE Connectivity |
| Manufacturer Part No., Manufacturer Product Number | 1658606-1 |
| Manufacturer Standard Lead Time | 4 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Mating Connector Lock | With |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Mating Hardware | Threaded Inserts |
| Mounting Style | Wire |
| Number of Positions, Number of Rows | 3 |
| Number of Rows | 2 |
| Number of Rows, Shell Size, Connector Layout | 5 (DD, D) |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Package, Product Status | Active |
| Package, Series | Bulk |
| Packaging | Tray |
| PCB Contact Termination Area Plating Material, Shell Plating | Tin |
| PCB Mount Retention Type | None |
| Preloaded, Shielded | Yes |
| Primary Type | D-Ribbon |
| Product Category | D-Sub Standard Connectors |
| Screw | 4-40 UNC 2B |
| Sealable | No |
| Series | HDF-20 Series, AMPLIMITE HDF-20 |
| Shell Material, Shell Type | Front Metal Shell |
| Shell Size | 5 |
| Solid Wire Size | .1 ? .13 |
| Solid Wire Size, Wire Size | 28 ? 26 |
| Special Features | Strain Relief |
| Termination | IDC/Ribbon Cable |
| Termination Method to Wire | Insulation Displacement Crimp (IDC) |
| Termination Style | IDC |
| Type | Cable Socket |
| Voltage Rating | 250 V |
| Wire Size | 26-28 AWG, .08 ? .15 |
| Wire/Cable Type | Ribbon Cable |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 1658606-1 | 14.63 | 67.298 | 4 | 2310 | TE CONNECTIVITY/AMP BRAND | 14.63 @ Qty: 5+ | |||
| Future Electronics | 7791072 | 19.212 | 1779.0312 | 224 | 5 | TE Connectivity | 19.212 @ Qty: 5+ | |||
| Onlinecomponents.com | 1658606-1 | 19.58 | 66.572 | 1 | 5 | TE Connectivity / AMP Brand | 19.58 @ Qty: 5+ | |||
 | Zoro | G501040595 | 21.24 | 72.216 | 1 | 5 | Te Connectivity | 21.24 @ Qty: 5+ | ||
| us.rs-online.com | 70043028 | 22.94 | 77.996 | 1 | 209 | TE Connectivity | 22.94 @ Qty: 5+ | |||
| TE Connectivity | 1658606-1 | 24.36345 | 82.83573 | 1 | 137 | TE Connectivity (TE) | 24.36345 @ Qty: 5+ | |||
| Newark | 84AC3479 | 25.27 | 399.266 | 32 | 5 | AMP - TE CONNECTIVITY | 25.27 @ Qty: 25+ | |||
 | TME | 1658606-1 | 26.39 | 131.95 | 5 | 5 | TE Connectivity | 26.39 @ Qty: 5+ | ||
 | swatee.com | 1658606-1 | 26.87 | 91.358 | 1 | 247 | TE Connectivity | 26.87 @ Qty: 5+ | ||
| AmazonTP | B00OVE5NIU | 29.52 | 100.368 | 1 | 5 | 1 | TE Connectivity / AMP Brand | 29.52 @ Qty: 5+ | ||
 | Digi-Key | 825362 | 37.032 | 125.9088 | 1 | 1080 | TE Connectivity AMP Connectors | 37.032 @ Qty: 5+ | ||
| RS Delivers | 409-3466 | 60.36 | 205.224 | 1 | 231 | TE Connectivity | 60.36 @ Qty: 5+ |
