TE Connectivity / AMP 1658610-2

B083N9PQ62

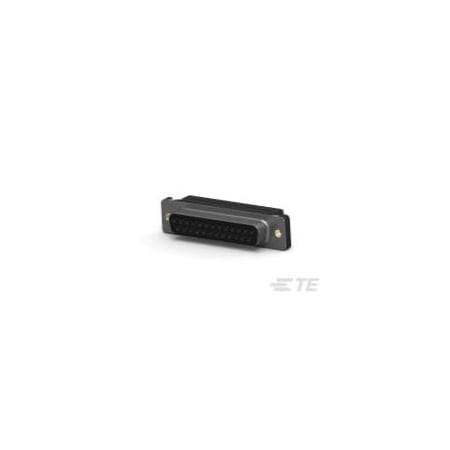

1658610-2, RECPT Assy, Front Metal Shell, Threaded Inserts, Lead-Free, AMPLIMITE HDF (10 Items)

1658610-2, RECPT Assy, Front Metal Shell, Threaded Inserts, Lead-Free, AMPLIMITE HDF (10 Items)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
AngleStraight
ApplicationCommercial
Attributes for sub747052-2 (TYCO)
Backset Spacing-
Base Product Number1658610
Cable Insulation Diamet..81 ? .97?mm?[?.032 ? ..
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.0545?in?]
Circuit ApplicationSignal
ColorBlack, -
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector StyleD-Sub, Receptacle, Rece.
Connector SystemCable-to-Cable
Connector Type25, Receptacle, Female .
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.25
Contact FinishGold, 30.0?in (0.76?m)
Contact Finish Thickness-, 30.0?in (0.76?m)
Contact Form-, Thermoplastic
Contact MaterialPhosphor Bronze, -
Contact PlatingGold
Contact Size20
Contact TypeFree Hanging (In-Line),.
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating1.25 A
Current Rating (Amps)1.25A, -55?C ~ 105?C
DescriptionCONN D-SUB RCPT 25POS I.
Detailed Description25 Position D-Sub Recep.
Dielectric Material26-28 AWG, Stranded or .
Digi-Key Part NumberAFL25B-ND
ECCNEAR99
EnclosureWithout
FeaturesFeed Through, Steel, Ti.
Flange FeatureIDC, Ribbon Cable, Hous.
Housing MaterialThermoplastic
Ingress ProtectionUL94 V-0, -
Insert MaterialBrass
Insulation Diameter0.032-0.038 "
Itar RegisteredNo
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658610-2
Material Flammability R.UL94 V-0, 1.25A
Mating Connector LockWith
Mating Connector Lock T.Threaded Insert, 4-40 U.
Mating HardwareThreaded Inserts
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Number of Contacts25
Number of Positions25, 2
Number of Rows2, 3 (DB, B)
Operating Temperature-55?C ~ 105?C, -
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageActive, Bulk
Part StatusD-Sub
PCB Contact Termination.Tin
PCB Mount Retention TypeNone
PreloadedYes
Primary TypeD-Ribbon
Product StatusObsolete
SealableNo
SeriesBulk, AMPLIMITE HDF-20,.
Shell MaterialFront Metal Shell
Shell Material, FinishGold, Steel, Tin Plated
Shell Size3
Shell Size, Connector L.Signal, 3 (DB, B)
Shell TypeFront Metal Shell
ShieldedYes
Solid Wire Size28 ? 26, .1 ? .13
Special FeaturesStrain Relief
StandardsUL94 V-0
TerminationIDC, Ribbon Cable, IDC/.
Termination Method to W.Insulation Displacement.
TypeCable Socket
Voltage Rating-, 250 V, Black
Wire Gauge26-28 AWG, Stranded or .
Wire Size28 ? 26, .08 ? .15, 26-.
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk Electronics1658610-24.6755TE Connectivity4.67 @ 5
WaldomTE CONNECTIVITY 1658610-27.825205TE Connectivity7.82 @ 5
thumbzoomNewark42K66489.261391AMP - TE CONNECTIVITY9.26 @ 5
Onlinecomponents.com1658610-210.7412752TE Connectivity / AMP Brand10.74 @ 5
thumbzoomZoroG20100922911.0405Te Connectivity11.0 @ 40
TE Connectivity1658610-213.945771669TE Connectivity (TE)13.94577 @ 5
RS Delivers192-003514.941760TE Connectivity14.94 @ 5
thumbzoomTME1658610-216.8915TE Connectivity16.89 @ 5
thumbzoomDigi-Key82535621.015TE Connectivity AMP Connectors21.0 @ 5
Future Electronics112567321.1264005TE Connectivity21.126 @ 400
us.rs-online.com7008559924.891232TE Connectivity24.89 @ 5
