mpn:
manufacturer:
MPN:
Preferred Price:
2.78
Price:
2.78
Min Simple Price:
0.787
Absolute Min Price:
2.29
Min Price:
2.29
Dimensions:
[1.0, 1.0, 1.0]
qty:
127
simpleSku:
NjI5OA:::1825437-1
sku:
NjI5OA::DO:1825437-1@y0
condition:
11
seller:
Avnet
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications, Features, Ingress Protection, Mated Stacking Heights, Overall Contact Length, Row Spacing - Mating, Voltage Rating | - |
| Base Product Number | 825437 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Green |
| Connection Material | Brass, Copper-Zinc |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Header, Breakaway |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3.90?in (0.099?m) |
| Contact Finish Thickness - Post | 98.4?in (2.50?m) |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Contact Material | Brass |
| Contact Plating Thickness | 31.5 ?in |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 5 A |
| Current Rating (Amps) | 5A |
| Fastening Type | Push-Pull |
| Features | With Strain Relief |
| Flammability Rating | UL 94 V-0 |
| Hole Center to Center | 2.54 mm |
| Insulation Height, Pitch - Mating | 0.100" (2.54mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |

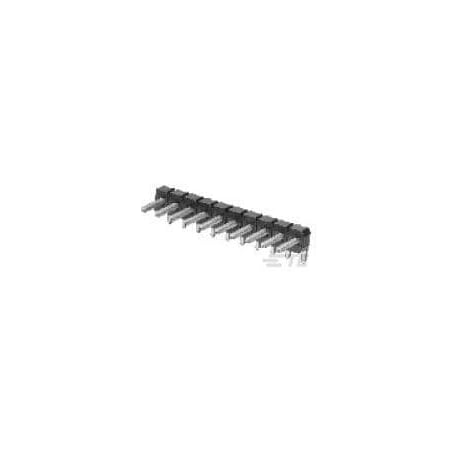

| Item | PCB Mount Header |
| Material | Glass-Filled PBT |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 105?C |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts, Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows, Package Quantity | 1 |
| Operating Temperature | -65?C ~ 105?C |
| Package | Bulk |
| Product Status | Active |
| Series | AMPMODU Mod II |
| Shrouding | Unshrouded |
| Standards | CSA LR7189; UL E28476 |
| Style | Board to Board or Cable |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder |
| Type | Breakaway |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | 1-825437-1 | 0.787 | 1511.5122 | 4800 | 127 | TE Connectivity / AMP | 0.787 @ Qty: 4800+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 1-825437-1 | 0.84 | 22.344 | 65 | 4350 | TE CONNECTIVITY/AMP BRAND | 0.84 @ Qty: 65+ | |||
| Digi-Key | 2276056 | 0.92222 | 1771.215732 | 4800 | 108 | TE Connectivity AMP Connectors | 0.92222 @ Qty: 4800+ | |||
| us.rs-online.com | 72052387 | 1.1 | 2112.66 | 4800 | 90 | TE Connectivity | 1.1 @ Qty: 4800+ | |||
 | Zoro | G305785937 | 1.25 | 35.75 | 70 | 80 | Te Connectivity | 1.25 @ Qty: 70+ | ||
| Newark | 17R5528 | 21.83 | 28374.634 | 3248 | 127 | AMP - TE CONNECTIVITY | 21.83 @ Qty: 3248+ | |||
 | Powell Electronics | 1825437-1 | 24.3566 | 31658.70868 | 3248 | 127 | TE Connectivity | 24.3566 @ Qty: 3248+ |
