TE Raychem 3-1123723-9

B07NQRHXJG

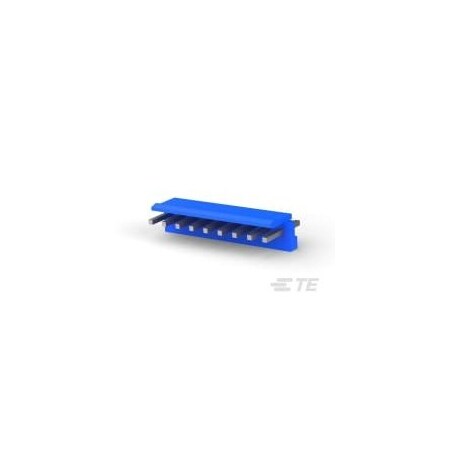

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1123723
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 9POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA117565-ND
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorBlue
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-1123723-9
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions9
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageBulk
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark98X95610.32125200311AMP - TE CONNECTIVITY0.321 @ 25200
thumbzoomZoroG4009388560.4225200311Te Connectivity0.42 @ 25200
WaldomTE CONNECTIVITY AMP BRAND 3-1123723-90.431501442TE CONNECTIVITY/AMP BRAND0.43 @ 150
thumbzoomDigi-Key47309060.7761501442TE Connectivity AMP Connectors0.776 @ 150
