TE Connectivity 3-641119-7

B00KSPGUV0

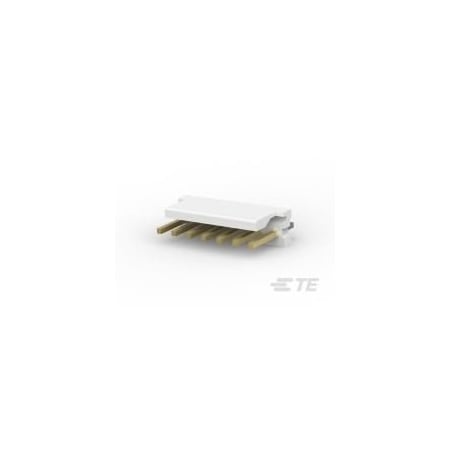

TE Connectivity Part Number 3-641119-7

TE Connectivity Part Number 3-641119-7zoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number641119
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact Length - Mating0.400" (10.16mm)
Contact Length - Post0.125" (3.18mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 7POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number3-641119-7-ND
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorNatural
Insulation Height0.425" (10.80mm)
Insulation MaterialThermoplastic, Glass Fi.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-641119-7
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions7
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.650" (16.51mm)
PackageBulk
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesMTA-156
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-641119-71.51401954TE CONNECTIVITY/AMP BRAND1.51 @ 40
Future ElectronicsC0129271261.524100078TE Connectivity1.524 @ 1000
Newark18R10191.84100054AMP - TE CONNECTIVITY1.84 @ 1000
thumbzoomZoroG4009288262.12454Te Connectivity2.12 @ 4
thumbzoomDigi-Key18626662.712401954TE Connectivity AMP Connectors2.712 @ 40
