TE Raychem 4-1123723-7

B07NQS6SJT

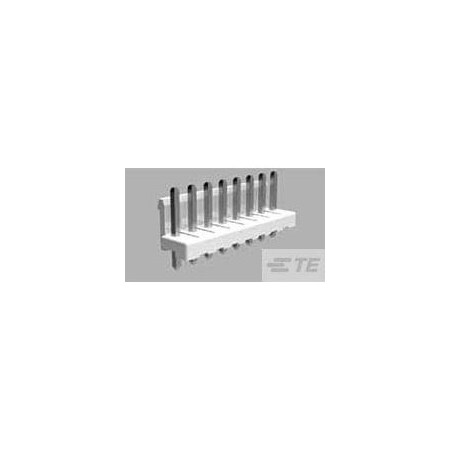

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1123723
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating (Amps)7.5A
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorRed
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions7
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageBulk
Part StatusActive
Pitch - Mating0.156" (3.96mm)
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark99X22190.24326000100AMP - TE CONNECTIVITY0.243 @ 26000
Digi-Key47309170.28911153846226000100TE Connectivity AMP Connectors0.289111538462 @ 26000
WaldomTE CONNECTIVITY AMP BRAND 4-1123723-70.332002340TE CONNECTIVITY/AMP BRAND0.33 @ 200
thumbzoomZoroG6009392570.3826000100120Te Connectivity0.38 @ 26000
