TE Raychem 4-1123723-8

B07NQSGNXK

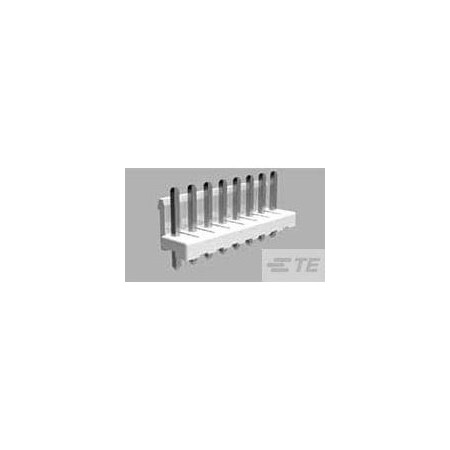

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationPower
ApplicationsGeneral Purpose, Indust.
CategoryConnectors, Interconnec.
ColorRed
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303"" (7.70mm)
Contact Length - Post0.146"" (3.70mm)
Contact MaterialBrass
Contact Plating Thickne.1 ?m
Contact ShapeSquare
Contact TypePin; Tab, Male Pin
Current Rating8 A
Current Rating (Amps)7.5A
Fastening TypeFriction Lock
FeaturesUnshrouded, -
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Height8.2 mm
Hole Center to Center3.96 mm
Ingress Protection-
Insulation ColorRed
Insulation Height0.118"" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
ItemHeader
Length31.62 mm
Mated Stacking Heights-
MaterialGlass-Filled PBT
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts8
Number of Positions8
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567"" (14.40mm)
PackageBulk
Package Quantity1
Part StatusActive
Pitch - Mating0.156"" (3.96mm)
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Voltage Rating250VAC
Width0.421 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 4-1123723-80.28280001000TE CONNECTIVITY/AMP BRAND0.28 @ 28000
Newark99X22200.2928000344AMP - TE CONNECTIVITY0.29 @ 28000
Digi-Key47309180.5113754TE Connectivity AMP Connectors0.51 @ 1
thumbzoomZoroG40589247483.61344Te Connectivity83.6 @ 1
