Crimp Supply 4-1564514-1

B09SJ3N7WN

Deutsch - 4-1564514-1-4-1564514-1 - (Pack of 1)

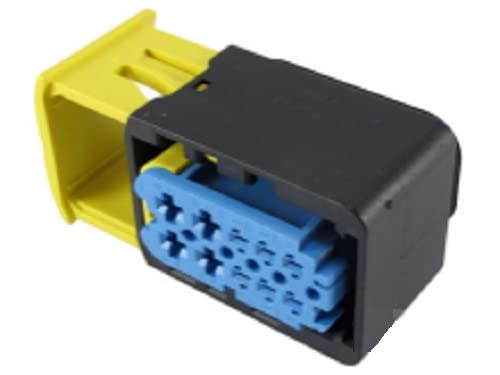

Deutsch - 4-1564514-1-4-1564514-1 - (Pack of 1)zoom

Attributes

Key Value
Base Product Number1564514
Body MaterialPBT GF
Cable Exit AngleOther
CategoryConnectors, Interconnec.
Centerline (Pitch)4, 6, .157, .236
Circuit ApplicationSignal
ColorBlue, Black
Connector Position Assu.No
Connector StyleHousing for female term.
Connector SystemWire-to-Wire
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Country of Origin (subj.Germany
Degree of ProtectionIP67
DescriptionCONN RCPT HSG 10POS
Detailed Description10 Rectangular Connecto.
Digi-Key Part Number4-1564514-1-ND
Fastening TypeSlide-On
FeaturesSealed
Height?:</span> .31.25?mm?[?1.23?in?]
Hybrid ConnectorYes
Insulation MaterialPolybutylene Terephthal.
Length?:</span> .54.1?mm?[?2.13?in?]
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.4-1564514-1
Manufacturer Standard L.31 Weeks
Mating Tab Width1.5, 2.8, .059, .11
MfrTE Connectivity AMP Con.
Mounting FeatureWithout
Mounting TypeFree Hanging (In-Line)
Nominal Voltage Archite.12, 24, 42, 60
NoteContacts Not Included
Number of Positions10
Number of Rows2
Operating Temperature-40?C ~ 140?C
Operating Temperature R.-40 ? 140??C?[?-40 ? 28.
Operating Voltage60
PackageBulk
Packaging MethodBox
Packaging Quantity300
Pitch-
PolarizedYes
Primary Locking FeatureOn the Terminal
Product StatusActive
Row Spacing0.236" (6.00mm)
Row-to-Row Spacing&thin.6?mm?[?.236?in?]
SealableYes
SeriesHeavy Duty Sealed Conne.
ServiceableYes
Strain ReliefNo
Terminal Position Assur.Yes
UL Flammability RatingUL 94V-0
Width?:</span> .25.7?mm?[?1.012?in?]

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

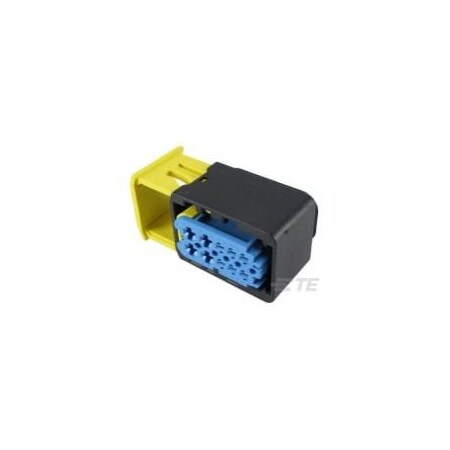

WaldomTE CONNECTIVITY AMP BRAND 4-1564514-11.93302646TE CONNECTIVITY/AMP BRAND1.93 @ 30
TE Connectivity4-1564514-12.2912323TE Connectivity (TE)2.29 @ 1
Newark99X24312.48240040TE CONNECTIVITY2.48 @ 1000
thumbzoomZoroG6009573052.97240040Te Connectivity2.97 @ 2400
thumbzoomDigi-Key54282873.07302646TE Connectivity AMP Connectors3.07 @ 30
