TE Connectivity / AMP 5352068-9

B083PT9QR7

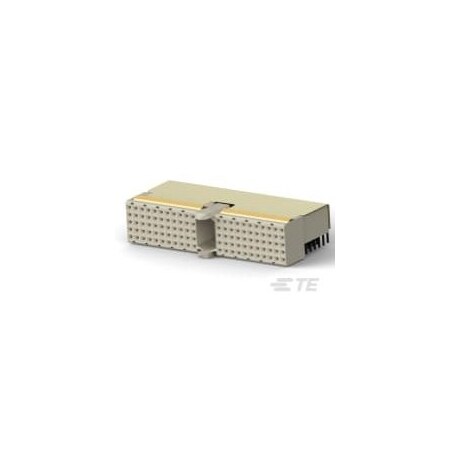

5352068-9, Z-Pack 2mm HM Type A - 25 Columns PRE-Shielded Receptacle (5 Items)

5352068-9, Z-Pack 2mm HM Type A - 25 Columns PRE-Shielded Receptacle (5 Items)zoom

Attributes

Key Value
AdvancedTCA Specified P.No
Backplane ArchitectureMezzanine
Base Product Number5352068
CategoryConnectors, Interconnec.
Centerline (Pitch)3.7?mm?[?.145?in?]
Circuit ApplicationPower & Signal
CompactPCI DesignationJ1/J4
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleA 22
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Connector UsageCompactPCI J1/J4
Contact Base MaterialPhosphor Bronze
Contact ConfigurationACTION PIN, Signal
Contact Current Rating .1.5
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Mating Area Pla.Tin
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact TypePin
Country of Origin (subj.China
Current Rating (Amps)1.5 A
Data Rate?1
DescriptionCONN RECEPT 110POS 2MM .
Detailed Description110 Position Receptacle.
Digi-Key Part Number5352068-9-ND
FeaturesUpper Shield
Housing ColorGray
Housing MaterialPolyester - GF
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5352068-9
Manufacturer Standard L.14 Weeks
Mating Alignment TypeMulti-Purpose Center
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Columns22
Number of Positions110
Number of Positions Loa.All
Number of Rows5
Number of Signal Positi.110
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageTube
Packaging MethodTube
Packaging Quantity11
PCB Mount OrientationRight Angle
Pitch0.079" (2.00mm)
Product StatusActive
Rows LoadedA, B, C, D, E
SealableNo
SeriesZ-PACK
TerminationPress-Fit
UL Flammability RatingUL 94V-0
Voltage Rating500Vrms

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5352068-98.9311658TE CONNECTIVITY/AMP BRAND8.93 @ 11
HotendaH71060611.0415TE Connectivity AMP Connectors11.04 @ 5
TE Connectivity5352068-914.071102TE Connectivity (TE)14.07 @ 5
us.rs-online.com7213590214.381655TE Connectivity14.38 @ 165
thumbzoomZoroG80106948714.456605Te Connectivity14.45 @ 660
Onlinecomponents.com5352068-914.82511384TE Connectivity14.825 @ 5
Mouser571-5352068-917.11178TE Connectivity17.1 @ 5
thumbzoomNewark42K714217.3415AMP - TE CONNECTIVITY17.34 @ 5
thumbzoomDigi-Key226346820.5321658TE Connectivity AMP Connectors20.532 @ 5
