TE Connectivity 5352069-9

B010IJ3TE6

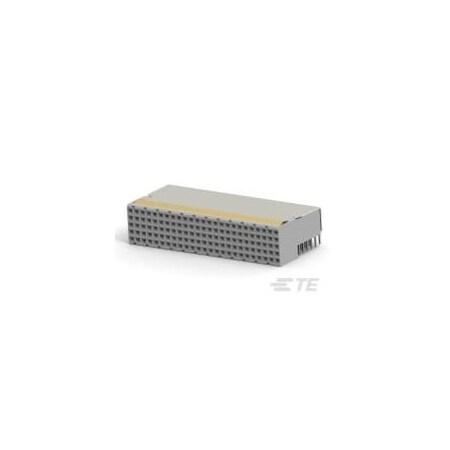

TE Connectivity Part Number 5352069-9

TE Connectivity Part Number 5352069-9zoom

Attributes

Key Value
AdvancedTCA Specified P.No
Backplane ArchitectureMezzanine
Base Product Number5352069
CategoryConnectors, Interconnec.
Centerline (Pitch)2?mm?[?.078?in?]
Circuit ApplicationPower & Signal
CompactPCI DesignationNone
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleB 25
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Connector Usage-
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSignal
Contact Current Rating .1.5
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact Mating Area Pla.Gold
Contact Mating Area Pla.1.27??m?[?50??in?]
Contact TypeSocket
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1.5 A
Data Rate?1
DescriptionCONN RECEPT 125POS 2MM .
Detailed Description125 Position Receptacle.
Digi-Key Part NumberA115368-ND
FeaturesUpper Shield
Housing ColorGray
Housing MaterialPolyester - GF
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5352069-9
Manufacturer Standard L.14 Weeks
Mating Alignment TypeMulti-Purpose Center
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Columns25
Number of Positions125
Number of Positions Loa.All
Number of Rows5
Number of Signal Positi.125
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageTube
Packaging MethodTube
Packaging Quantity11
Part StatusActive
PCB Connector Assembly .PCB Mount Receptacle
PCB Mount OrientationRight Angle
Pitch0.079" (2.00mm)
Product StatusActive
Rows LoadedA, B, C, D, E
SealableNo
SeriesZ-PACK
TerminationPress-Fit
UL Flammability RatingUL 94V-0
Voltage Rating500Vrms

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark42K714412.84990In StockAMP - TE CONNECTIVITY12.84 @ 990
HotendaH71067114.921In StockTE Connectivity AMP Connectors14.92 @ 1
us.rs-online.com7213536715.07264In StockTE Connectivity15.07 @ 264
TE Connectivity5352069-915.33161246TE Connectivity (TE)15.3316 @ 1
thumbzoomZoroG10106946016.0132In StockTe Connectivity16.0 @ 132
WaldomTE CONNECTIVITY AMP BRAND 5352069-919.61144TE CONNECTIVITY/AMP BRAND19.6 @ 11
thumbzoomDigi-Key226351122.81888TE Connectivity AMP Connectors22.8 @ 1
