TE Connectivity / AMP Brand 5-103080-3

B00FRBUB6A

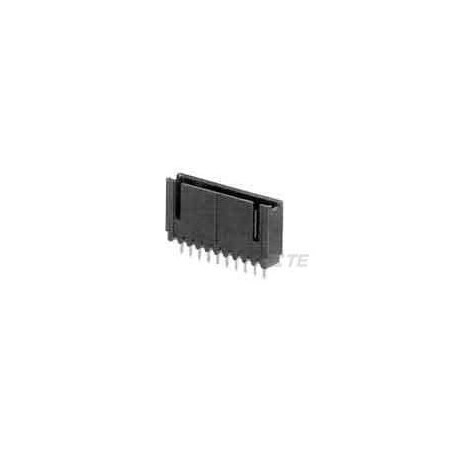

TE Connectivity/AMP Brand 5-103080-3 Connector Headers and PCB Receptacles

TE Connectivity/AMP Brand 5-103080-3 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.571-5-103080-3
Applications-
Base Product Number103080
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy, Brass
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 5POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA32982-ND
Fastening TypePush-Pull
Features-
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.549" (13.94mm)
Insulation MaterialThermoplastic
Insulation Resistance5000 MOhms
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-103080-3
Manufacturer Product Nu.5-103080-3
Manufacturer Standard L.18 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating Post Length6.1 mm
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Operating Temperature R.- 65 C to + 105 C
Overall Contact Length0.589" (14.96mm)
PackageTube
PackagingTube
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating-
SeriesAMPMODU MOD II
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Termination Post Length3.3 mm
Termination StyleThrough Hole
TradenameAMPMODU
TypeShrouded
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-103080-31.13681676TE CONNECTIVITY/AMP BRAND1.13 @ 68
Newark76AC74281.6312241676AMP - TE CONNECTIVITY1.63 @ 1224
thumbzoomswatee.com5-103080-31.73125TE Connectivity1.73 @ 25
thumbzoomDigi-Key10930531.96913260TE Connectivity AMP Connectors1.969 @ 25
Onlinecomponents.com5-103080-32.5234336TE Connectivity2.52 @ 34
thumbzoomZoroG1009398632019.6122425125Te Connectivity2019.6 @ 1224
