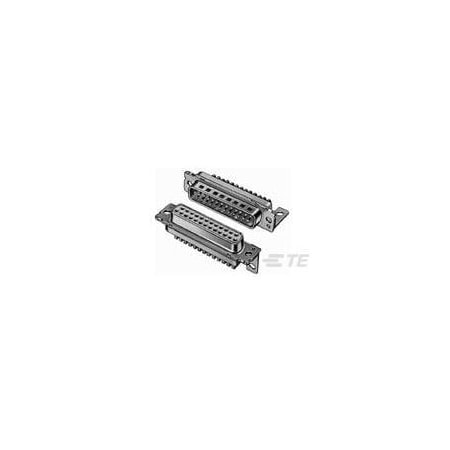

TE Connectivity 5-1393480-5

mpn5-1393480-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 5-1393480-5

Brand: TE Connectivity
PartNumber: 5-1393480-5
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Approved Standards	DIN 41652
Backset Spacing	0.371" (9.43mm)
Base Product Number	1393480
Category	Connectors, Interconnec.
Centerline (Pitch)	2.74?mm?[?.108?in?]
Circuit Application	Signal
Color	Gray
Connector	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Style	D-Sub, Receptacle
Connector System	Cable-to-Board
Connector Type	Receptacle, Female Sock.
Contact Base Material	Copper Alloy
Contact Current Rating .	2.2
Contact Finish	Gold
Contact Finish Thickness	-
Contact Form	-
Contact Material	Copper Alloy
Contact Shape	Round
Contact Type	Signal
Contact Underplating Ma.	Nickel
Country of Origin (subj.	Poland
Current Rating (Amps)	2.2A
Description	CONN D-SUB RCPT 9POS R/.
Detailed Description	9 Position D-Sub Recept.
Dielectric Material	Polybutylene Terephthal.
Digi-Key Part Number	A117660-ND
Features	Board Lock
Flange Feature	Housing/Shell (Unthread.
Ingress Protection	-
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	5-1393480-5
Manufacturer Standard L.	31 Weeks
Material Flammability R.	UL94 V-0
Mating Connector Lock	Without
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole, Right Ang.
Number of Positions	9
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Operating Temperature R.	-55 ? 125??C?[?-67 ? 25.
Package	Bulk
Panel Mount Feature	With
Part Status	Active
PCB Contact Termination.	Tin
PCB Mount Orientation	Right Angle
PCB Mount Retention	With
PCB Mount Retention Type	Boardlock
PCB Mounting Style	Through Hole
Product Status	Active
Profile	Eurostyle
Row-to-Row Spacing	.112 in, 2.84 mm
Sealable	No
Series	AMPLIMITE HD-20
Shell Material, Finish	Steel, Tin Plated
Shell Size	1
Shell Size, Connector L.	1 (DE, E)
Shell Type	Full Metal Shell
Termination	Solder
Voltage Rating	-
Wire Gauge	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 5-1393480-5	3.47	20	797		TE CONNECTIVITY/AMP BRAND	3.47 @ 20
Newark	15H7708	4.72	800	10		AMP - TE CONNECTIVITY	4.72 @ 500
TE Connectivity	5-1393480-5	4.7771	1	696		TE Connectivity (TE)	4.7771 @ 10
Hotenda	H809708	5.328	1	10		TE Connectivity AMP Connectors	5.328 @ 10
Digi-Key	4731256	5.834	1	816		TE Connectivity AMP Connectors	5.834 @ 10
Zoro	G800973938	6.21	400	10	175	Te Connectivity	6.21 @ 400
