TE Raychem 825457-7

B07NQSX3MZ

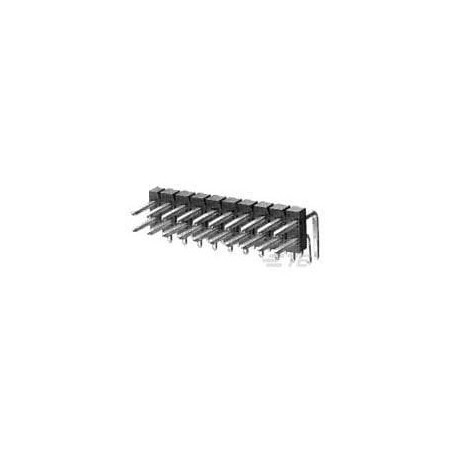

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Applications-
Base Product Number825457
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.3.90?in (0.099?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.264" (6.70mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Poland
Current Rating (Amps)-
DescriptionCONN HEADER R/A 14POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number825457-7-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorGreen
Insulation Height0.197" (5.00mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.825457-7
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key55894061.00234800100TE Connectivity AMP Connectors1.0023 @ 4800
Newark16H75391.04480096AMP - TE CONNECTIVITY1.04 @ 4800
us.rs-online.com720524061.114800100TE Connectivity1.11 @ 4800
thumbzoomZoroG2009405611.284800100Te Connectivity1.28 @ 4800
