| ANSI Number | CV50HC06M350 |
| Balanced to RPM | 25000 rpm;G 6.3@15000 rpm |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | Korea, Republic of |
| Features | Accurate Cutting at Extended Lengths, Extended Length Hydraulic Holders, Side Axial Adjustment |
| For Use With | CV50 Shank Tools;Hydraulic Tools |
| Hole Dia. | 6.00 mm; 6 mm |

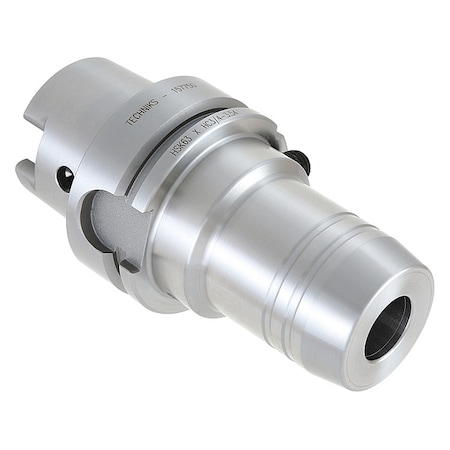

| Item | Hydraulic Chuck |
| Mounting Length | 27.00mm |
| Nose Dia. | 25.64 mm; 26 mm |
| Overall Length | 31.50mm |
| Projection | 70.00 mm; 88.90 mm |
| Shank Dia. | 6 mm, 6.00 mm |
| Shank Type - Machining | Cylindrical |
| Standards | ANSI B5.50 |
| Style | High Performance Line |
| Taper Size | CV50;HSK63A |
| Tool Depth | 27.00mm |
