- mpnXUVR0608PANM8
- brandname: Telemecanique Sensors
- manufacturername: Telemecanique Sensors

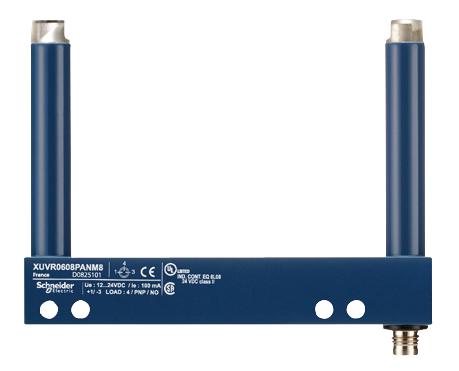

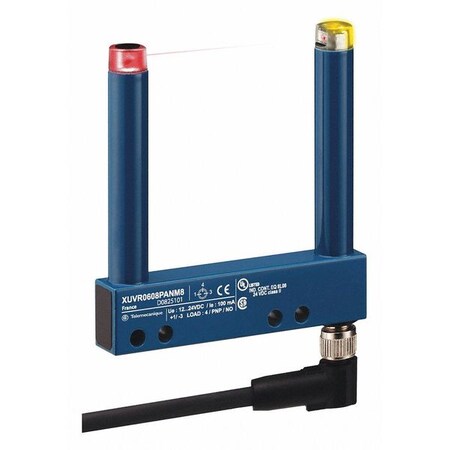

Telemecanique XUVR0608PANM8 Photoelectric Fork Sensor
- Brand: TELEMECANIQUE SENSORS
- PartNumber: XUVR0608PANM8
- Model: XUVR0608PANM8
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| [Sn] Nominal Sensing Di. | 80-80 mm |
| [Us] Rated Supply Volta. | 12...24 V DC reverse po. |
| Ambient Air Temperature. | -10-60?C |
| Application | detection on small conv. |
| Body dimensions | 12.1x104x85.7mm |
| Body Style | fork |
| Brand | Telemecanique |
| Catalog Number | XUVR0608PANM8 |
| Connection | connector M8, 1 male co. |
| Country of Origin | France |
| Current Consumption | < 20 mA no-load |
| Detection System | thru beam |
| Discrete Output Function | 1 NO |
| Discrete Output Type | PNP |
| Electrical Connection | 1 male connector M8, 3 . |
| Enclosure | IP65-IP67,PAINTED ALUMI. |
| Immunity To Ambient Lig. | 10000 lux natural light. |
| IP rating | IP65 |
| IP Rating | IP65 ; IP67 |
| Item | Photoelectric Fork Sens. |
| Item Type | FORK,GENERAL PURPOSE,PH. |
| Made in USA | No |
| Manufacturer | TELEMECANIQUE SENSORS, . |
| Material | metal/plastic |
| Max. operating current | 0.1A |
| Number of pins | 4 |
| Operating Temperature | -10-60 A?C |
| Operating temperature | -10...60?C |
| Operation mode | through-beam (with slot) |
| Operation modes | DARK-ON |
| Output | PNP, 1 NO,PNP,DISCRETE,. |
| Output configuration | PNP |
| Output Type | solid state |
| Passage Depth | 60 mm |
| Passage Width | 80 mm |
| Product Specific Applic. | detection on small conv. |
| Promotion Restriction | Not eligible for promot. |
| Range | 80mm |
| Sensing Mode | Through Beam |
| Sensing Range | 80-80 mm |
| Sensor Design | fork |
| Sensor Name | XUVR |
| Series | XUV Series |
| Series Name | general purpose |
| Shock Resistance | 30 gn 11 ms) IEC 60068-. |
| Size | fork |
| Slot Size | 80 mm |
| Special Features | OUTPUT STATE 1 LED YELL. |
| Spot Diameter | 0.03 in (0.8 mm) |
| Standard | IP65-IP67,UL-CE-CSA |
| Sub Brand | OSISENSE |
| Supply Circuit Type | DC |
| Switching Frequency | 4000 Hz |
| Type | Fork Sensors |
| Type of sensor | photoelectric |
| UPC | 785901933250 |
| UPC Code | 785901933250 |
| Voltage Rating | 12...24 V DC reverse po. |
| Warranty Description | Contractual Warranty:18. |
| Wiring Technique | 3-wire |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3125355 | 100.99 | 1 | In Stock | | Telemecanique Sensors | 0.19 | 100.99 @ 1 |
| RS Delivers | 695-6978 | 146.46 | 1 | 12 | | Telemecanique Sensors | | 146.46 @ 1 |
 | Newark | 52T6013 | 170.14 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 170.14 @ 1 |
| sustainablesupply.com | C3048622 | 185.64 | 1 | In Stock | | Telemecanique Sensors | 0.19 | 185.64 @ 1 |
| us.rs-online.com | 70380648 | 190.04 | 1 | 1 | | Telemecanique Sensors | | 190.04 @ 1 |
 | TME | XUVR0608PANM8 | 195.72 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 195.72 @ 1 |
 | crescentelectric.com | 752259 | 231.01 | 1 | In Stock | | Telemecanique | | 231.01 @ 1 |
