- mpnXY2CE1A250H7
- brandname: TELEMECANIQUE SENSORS
- manufacturername: TELEMECANIQUE SENSORS

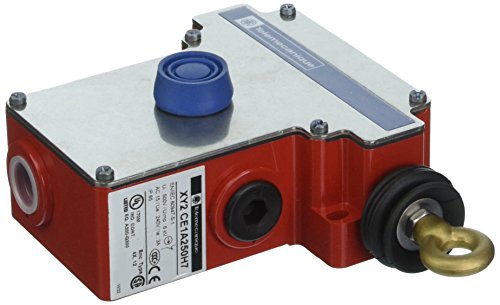

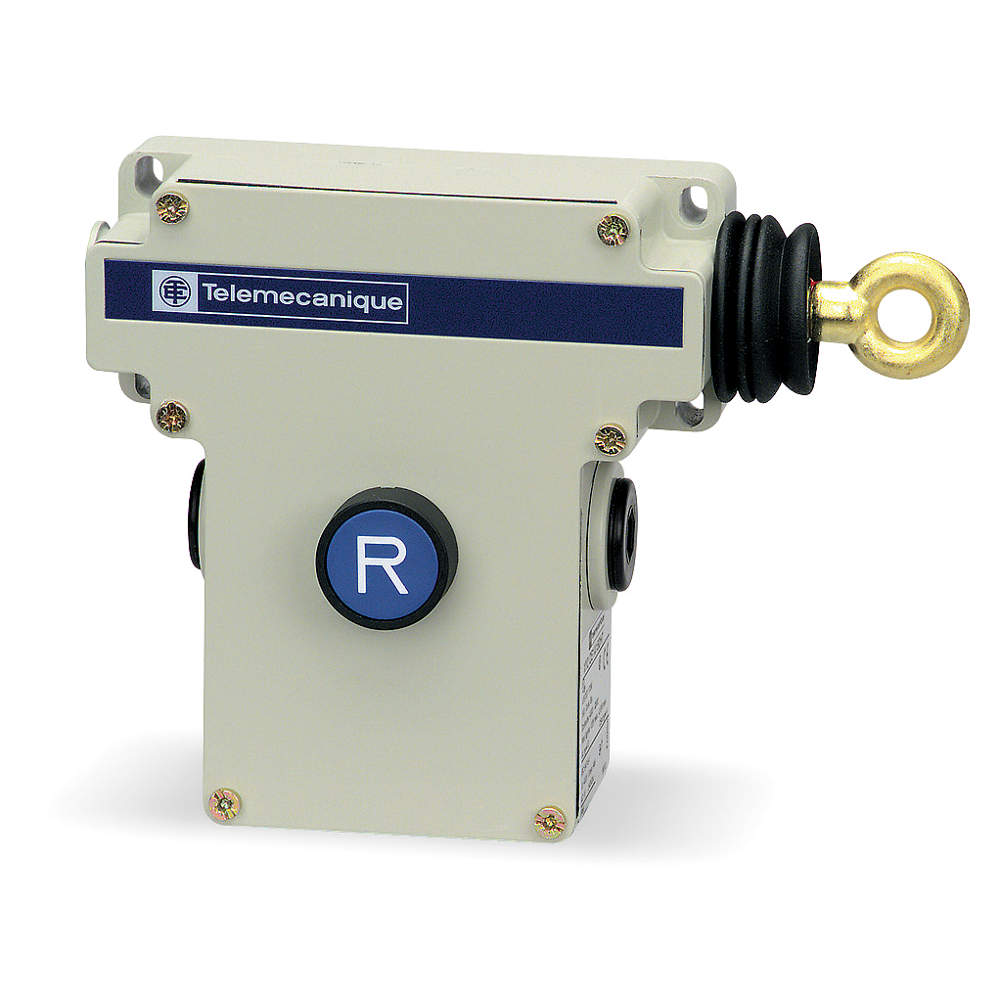

Telemecanique XY2CE Cable Pull Switch, Rt-Side Anchor Pt, Std. Force, Std. Bellows, IP65, Booted Reset, 1 NO and 1 NC Contacts, No Pilot Light, 1/2" NPT Tapped Entry, 300VAC, 10 Amp
- Brand: TELEMECANIQUE SENSORS
- PartNumber: XY2CE1A250H7
- Model: XY2CE1A250H7
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| AC Contact Rating | 3A @ 240V AC |
| Action | Slow-break |
| Amperage Rating | 10 |
| Application | XY2CE,XY2CE |
| Approvals | UL ; CSA |
| Brand | Telemecanique |
| Cable Connection Locati. | Right |
| Catalog Number | XY2CE1A250H7 |
| Color | Red RAL 3000 |
| Connection | Screw clamp terminal, 1. |
| Connection Type | 3 conduit openings, 1?2. |
| Contact Configuration | 1 NC + 1 NO |
| Contact Form | 1NC/1NO, 1NO ; 1NC |
| Country of Origin | Morocco |
| Current Rating | 10 A |
| DC Contact Rating | 0.27A @ 250V DC |
| Depth | 4.13 in |
| Enclosure | Stainless steel |
| For Use With | Preventa XPS Safety Rel. |
| Function | Safety |
| GTIN | 00785901459576, 0338911. |
| Indicator | None |
| IP Rating | 65 |
| Item | Emergency Cable Pull Sw. |
| Item Type | Latching emergency stop. |
| Length | 9.0 in |
| Length (Straight Wirewa. | 9.0 in |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Material | Housing: Zamak, Cover: . |
| Max. Cable Span | 165 ft |
| Min. Current | Not Applicable |
| Mounting Style | Single End |
| Mounting Type | Flat Surface/Bracket |
| NEMA Rating | 1, 12, 4 |
| Operating Force | Not Applicable |
| Operating Temperature | -25-70 A Degrees C |
| Reset | Booted Push Button |
| Series | XY2C Series |
| Special Features | Without pilot light |
| Standard | 10 GN 10-300 HZ)EN/IEC . |
| Standards | CSA Certified, UL Listed |
| Sub Brand | XY2CE |
| Switch Function | Maintained |
| Switching Ability | Single Cable |
| Temperature Operating R. | ?25?C to +70?C |
| Thermal Amperage | 10 A |
| Tolerance Resistance | 50 G, Duration 11 ms |
| Trigger Cable Maximum L. | 70 m |
| UPC | 785901459576 |
| UPC Code | 785901459576 |
| Voltage Rating | 3 A 240 V, AC-15, A300 . |
| Warranty Description | Contractual Warranty:18. |
| Width | 9.02 in |
| Wiring Entry | 1/2 in NPT |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 96F1945 | 391.09 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 391.09 @ 1 |
 | Zoro | G3238566 | 412.99 | 1 | 13 | | Telemecanique Sensors | 3.6 | 412.99 @ 1 |
 | sustainablesupply.com | C1198760 | 453.72 | 1 | In Stock | | Telemecanique Sensors | 3.6 | 453.72 @ 1 |
| us.rs-online.com | 70008111 | 458.48 | 1 | In Stock | | Telemecanique Sensors | | 458.48 @ 1 |
 | crescentelectric.com | 143935 | 495.48 | 1 | In Stock | | Telemecanique | | 495.48 @ 1 |
 | Raptor Supplies | AG7BNE | 677.762163 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 677.762163 @ 1 |
