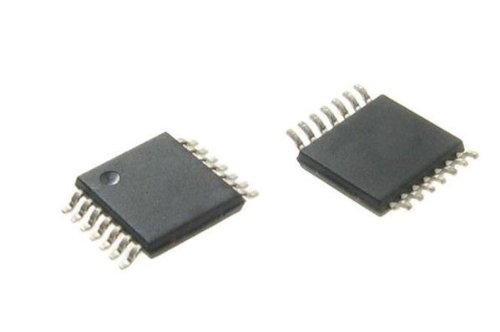

Texas Instruments CD4073BPWR

B005T7NPJW

CD4073BPWR

CD4073BPWRzoom

Attributes

Key Value
Alternate Part No.595-CD4073BPWR
Base Product NumberCD4073
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Current - Output High, .3.4mA, 3.4mA
Current - Quiescent (Ma.1 ?A
DescriptionIC GATE AND 3CH 3-INP 1.
Detailed DescriptionAND Gate IC 3 Channel 1.
Digi-Key Part Number296-14134-2-ND - Tape &.
Features-
High Level Output Curre.- 1.5 mA
Input Logic Level - High3.5V ~ 11V
Input Logic Level - Low1.5V ~ 4V
Logic FamilyCD4000
Logic TypeAND Gate
Low Level Output Current1.5 mA
ManufacturerTexas Instruments
Manufacturer Part No.CD4073BPWR
Manufacturer Product Nu.CD4073BPWR
Manufacturer Standard L.6 Weeks
Max Propagation Delay @.90ns @ 15V, 50pF
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 55 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Circuits3
Number of Gates3 Gate
Number of Input Lines3
Number of Inputs3
Number of Lines In/Out3 / 1
Number of Output Lines1
Operating Temperature-55?C ~ 125?C
Operating Temperature R.- 55 C to + 125 C
PackageTape & Reel (TR)
Package / Case14-TSSOP (0.173", 4.40m.
Package/CaseTSSOP-14
PackagingReel
ProductAND
Product CategoryLogic Gates
Product StatusActive
Propagation Delay Time120 ns
SeriesCD4073B, 4000B
Supplier Device Package14-TSSOP
Supply Voltage - Max18 V
Supply Voltage - Min3 V
Unit Weight57.200 mg
Voltage - Supply3V ~ 18V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH25469180.13951716Texas Instruments0.1395 @ 1
thumbzoomTMECD4073BPWR0.6311000TEXAS INSTRUMENTS0.63 @ 1
thumbzoomswatee.comCD4073BPWR0.7611443Texas Instruments0.76 @ 1
thumbzoomDigi-Key52594912.7216000Texas Instruments12.72 @ 1
