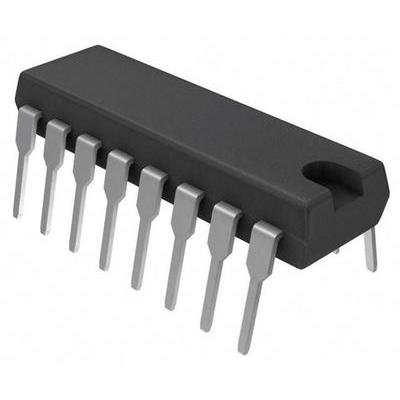

CD74HCT670E

Registers High Speed Cmos 4-By-4 Register File

Registers High Speed Cmos 4-By-4 Register Filezoom

Attributes

Key Value
Alternate Part No.595-CD74HCT670E
Base Part Number74HCT670
Base Product Number74HCT670
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
FunctionUniversal, Register File
High Level Output Curre.- 6 mA
Lead Free Status / RoHS.RoHS Compliant
Logic FamilyHCT
Logic TypeRegister File, CMOS
Low Level Output Current6 mA
ManufacturerTexas Instruments
Manufacturer Part No.CD74HCT670E
Manufacturer Part NumberCD74HCT670E
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 55 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Bits per Elem.4
Number of CircuitsSingle
Number of Elements1
Operating Temperature-55, -55?C ~ 125?C
Output TypeTri-State
PackageTube
Package / Case16-DIP (0.300", 7.62mm)
Package/CasePDIP-16
PackagingTube
Product CategoryRegisters
Product StatusActive
Propagation Delay Time50 ns
SeriesCD74HCT670, 74HCT
Standard Package25
Supplier Device Package16-PDIP
Supply Voltage - Max5.5 V
Supply Voltage - Min4.5 V
Unit Weight1 g
Voltage - Supply4.5V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsCD74HCT670E3.87652775Texas Instruments3.87 @ 65
HotendaH25933756.66164Texas Instruments6.66 @ 1
RadwellCD74HCT670E8.361In StockTEXAS INSTRUMENTS SEMI8.36 @ 1
Digi-Key387499.621133Texas Instruments9.62 @ 1
thumbzoomswatee.comCD74HCT670E10.9129Texas Instruments10.9 @ 1
thumbzoomAmazonSCB00Q7VV1P412.11In StockTexas Instruments12.1 @ 1
