Texas Instruments DAC7573IPW

B017UUHFM8

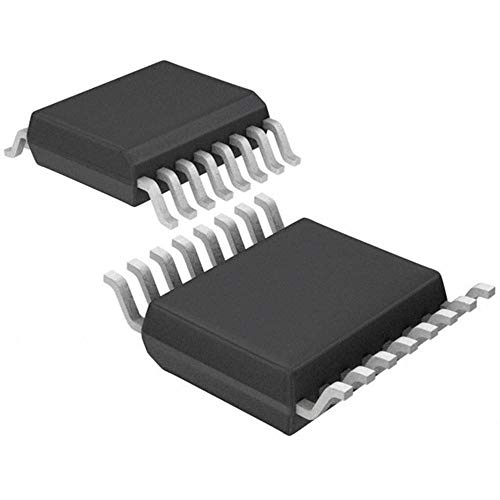

Digital to Analog Converter, 12 bit, 43 kSPS, Serial, 2.7V to 5.5V, TSSOP, 16 Pins

Digital to Analog Converter, 12 bit, 43 kSPS, Serial, 2.7V to 5.5V, TSSOP, 16 Pinszoom

Attributes

Key Value
Alternate Part No.595-DAC7573IPW
ArchitectureResistor-String, String.
Base Product NumberDAC7573
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Data InterfaceI?C
DescriptionIC DAC 12BIT V-OUT 16TS.
Detailed Description12 Bit Digital to Analo.
Development KitDAC7573EVM
Differential OutputNo
Digi-Key Part Number296-15745-5-ND
DigiKey ProgrammableNot Verified
INL/DNL (LSB)?8 (Max), ?1 (Max)
Integral Non-linearity+/- 8 LSB
Interface TypeSerial (2-Wire, I2C)
ManufacturerTexas Instruments
Manufacturer Part No.DAC7573IPW
Manufacturer Product Nu.DAC7573IPW
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 105 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Bits12
Number of Converters4
Number of D/A Converters4
Operating Temperature-40?C ~ 105?C
Output TypeVoltage, Voltage - Buff.
PackageTube
Package / Case16-TSSOP (0.173", 4.40m.
Package/CaseTSSOP-16
PackagingTube
Product CategoryDigital to Analog Conve.
Product StatusActive
Reference TypeExternal
Resolution12 bit
Sampling Rate43 kSPs
Series-, DAC7573
Settling Time12 us, 10?s
Supplier Device Package16-TSSOP
Supply Voltage - Max5.5 V
Supply Voltage - Min2.7 V
Unit Weight63 mg
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digit.2.7V ~ 5.5V
Voltage ReferenceExternal

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceDAC7573IPW12.2631477Texas Instruments12.26 @ 3
HotendaH238922917.391In StockTexas Instruments17.39 @ 1
thumbzoomNewark28AH214021.4146TEXAS INSTRUMENTS21.4 @ 1
thumbzoomDigi-Key59391131.411787Texas Instruments31.41 @ 1
thumbzoomswatee.comDAC7573IPW32.56164Texas Instruments32.56 @ 1
