- mpnDAC8534IPW
- brandname: Texas Instruments
- manufacturername: Texas Instruments

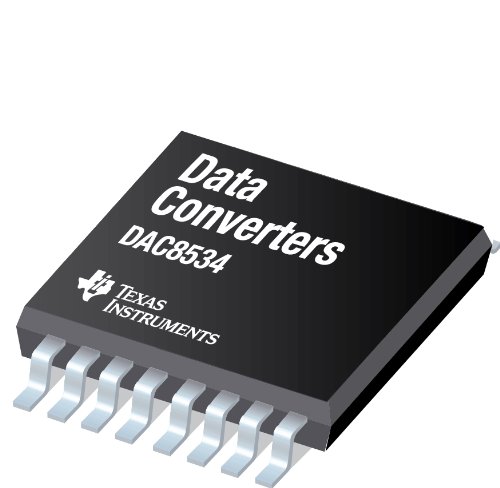

Texas Instruments Data Conversion - DAC - DAC8534IPW
- Brand: Texas Instruments
- PartNumber: DAC8534IPW
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Texas Instruments
- Label: Texas Instruments
Attributes
| Key | Value |
|---|
| Alternate Part No. | 595-DAC8534IPW |
| Architecture | Resistor-String, String. |
| Base Product Number | DAC8534 |
| Brand | Texas Instruments |
| Category | Integrated Circuits (IC. |
| Data Interface | SPI, DSP |
| Development Kit | DAC8534EVM |
| Differential Output | No |
| INL/DNL (LSB) | -, ?1 (Max) |
| Integral Non-linearity | +/- 0.0987 % FSR |
| Interface Type | QSPI, SPI, Serial (3-Wi. |
| Manufacturer | Texas Instruments |
| Manufacturer Part No. | DAC8534IPW |
| Maximum Operating Tempe. | + 105 C |
| Mfr | Texas Instruments |
| Minimum Operating Tempe. | - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Number of Converters | 4 |
| Number of D/A Converters | 4 |
| Operating Temperature | -40?C ~ 105?C |
| Output Type | Voltage, Voltage - Buff. |
| Package | Tube |
| Package / Case | 16-TSSOP (0.173", 4.40m. |
| Package/Case | TSSOP-16 |
| Packaging | Tube |
| Product Category | Digital to Analog Conve. |
| Product Status | Active |
| Reference Type | External |
| Resolution | 16 bit |
| Sampling Rate | 93 kSPs |
| Series | DAC8534, - |
| Settling Time | 10 us, 10?s |
| Supplier Device Package | 16-TSSOP |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 63 mg |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digit. | 2.7V ~ 5.5V |
| Voltage Reference | External |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2389251 | 18.75 | 1 | In Stock | | Texas Instruments | | 18.75 @ 1 |
 | Radwell | DAC8534IPW | 22.55 | 90 | In Stock | | TEXAS INSTRUMENTS SEMI | 3.0 | 22.55 @ 90 |
 | swatee.com | DAC8534IPW | 33.98 | 1 | 269 | | Texas Instruments | | 33.98 @ 1 |
| Digi-Key | 509876 | 35.39 | 1 | In Stock | | Texas Instruments | | 35.39 @ 1 |
| AmazonTP | B00AZVKSII | 38.14 | 1 | In Stock | 5 | Texas Instruments | | 38.14 @ 1 |
| AmazonSC | B00AZVKSII | 38.14 | 1 | In Stock | | Texas Instruments | | 38.14 @ 1 |
