Texas Instruments DS75176BTN/NOPB

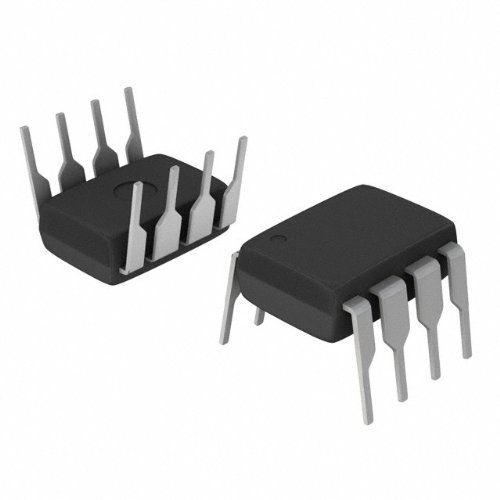

TEXAS INSTRUMENTS DS75176BTN/NOPB IC, RS-422/RS-485 TRANSCEIVER, 5V, DIP-8 (1 piece)

TEXAS INSTRUMENTS DS75176BTN/NOPB IC, RS-422/RS-485 TRANSCEIVER, 5V, DIP-8 (1 piece)zoom

Attributes

Key Value
Alternate Part No.926-DS75176BTN/NOPB
Base Product NumberDS75176
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Data Rate10 Mb/s, -
DuplexHalf Duplex, Half
FunctionTransceiver
ManufacturerTexas Instruments
Manufacturer Part No.DS75176BTN/NOPB
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.900 mW
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Drivers1 Driver
Number of Drivers/Recei.1/1
Number of Receivers1 Receiver
Operating Supply Voltage5 V
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
PackageTube
Package / Case8-DIP (0.300", 7.62mm)
Package/CasePDIP-8
PackagingTube
Part StatusObsolete
Product CategoryRS-422/RS-485 Interface.
Propagation Delay Time .22 ns, 37 ns
ProtocolRS422, RS485
Receiver Hysteresis70 mV
SeriesDS75176BT, -
ShutdownYes
Supplier Device Package8-MDIP
Supply Current55 mA
TypeTransceiver
Voltage - Supply4.75V ~ 5.25V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH24620961.5615Texas Instruments1.56 @ 5
RadwellDS75176BTNNOPB2.1315TEXAS INSTRUMENTS SEMI2.13 @ 5
thumbzoomswatee.comDS75176BTN/NOPB2.711325Texas Instruments2.71 @ 5
