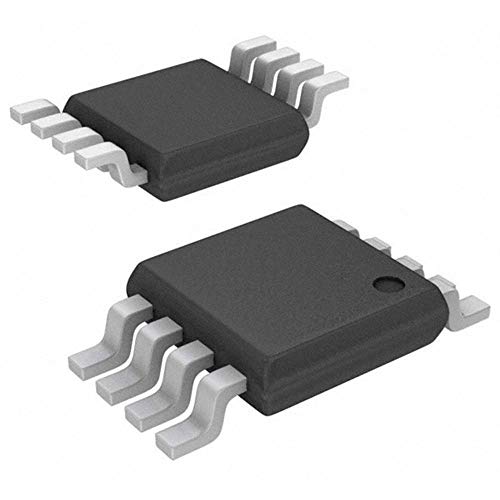

Texas Instruments LM5085MYE/NOPB

B00AZVCGLU

LM5085MYE/NOPB

LM5085MYE/NOPBzoom

Attributes

Key Value
Alternate Part No.926-LM5085MYE/NOPB
Base Product NumberLM5085
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Clock SyncNo
Control FeaturesCurrent Limit, Enable, .
DescriptionIC REG CTRLR BUCK 8MSOP
Detailed DescriptionBuck Regulator Positive.
Development KitLM5085EVAL/NOPB
Digi-Key Part Number296-LM5085MYE/NOPBTR-ND.
Duty Cycle (Max)100%
Duty Cycle - Max100 %
Frequency - SwitchingUp to 1MHz
FunctionStep-Down
Input Voltage4.5 V to 75 V
ManufacturerTexas Instruments
Manufacturer Part No.LM5085MYE/NOPB
Manufacturer Product Nu.LM5085MYE/NOPB
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1, 1 Output
Operating Temperature-40?C ~ 125?C (TJ)
Output ConfigurationPositive
Output Current1.75 A
Output Phases1
Output TypeTransistor Driver
Output Voltage1.25 V to 75 V
PackageTape & Reel (TR)
Package / Case8-PowerTSSOP, 8-MSOP (0.
Package/CaseMSOP
PackagingReel
Product CategorySwitching Controllers
Product StatusNot For New Designs
Serial Interfaces-
SeriesLM5085, -
Supplier Device Package8-HVSSOP
Switching Frequency1 MHz
Synchronous RectifierNo
TopologyBuck
Voltage - Supply (Vcc/V.4.5V ~ 75V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH27365701.7625063Texas Instruments1.76 @ 250
RS Delivers921-69861.888825063Texas Instruments1.8888 @ 250
tistore.comLM5085MYE/NOPB1.929151Texas Instruments1.929 @ 1
RadwellLM5085MYENOPB2.5125039TEXAS INSTRUMENTS SEMI2.51 @ 250
TMELM5085MYE/NOPB2.63139TEXAS INSTRUMENTS2.63 @ 1
Mouser926-LM5085MYE/NOPB2.74151Texas Instruments2.74 @ 1
thumbzoomNewark33AH42392.9225039TEXAS INSTRUMENTS2.92 @ 250
thumbzoomDigi-Key19979633.03139Texas Instruments3.03 @ 1
thumbzoomswatee.comLM5085MYE/NOPB4.5112170Texas Instruments4.51 @ 1
