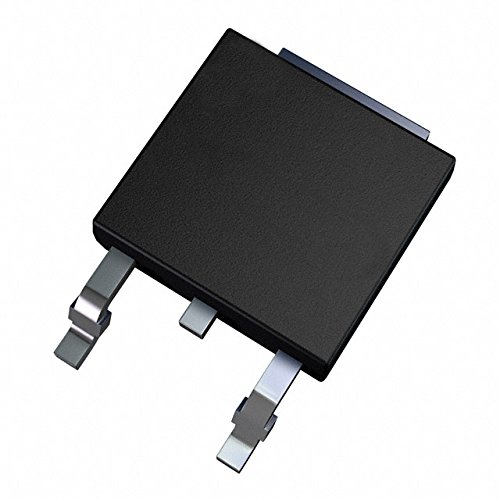

Texas Instruments LMS8117ADTX-ADJ/NOPB

LMS8117ADTX-ADJ/NOPB

LMS8117ADTX-ADJ/NOPBzoom

Attributes

Key Value
Base Part NumberLMS8117
Base Product NumberLMS8117
CaseTO252
CategoryIntegrated Circuits (IC.
Control Features-
Current - Output1A
Current - Quiescent (Iq)5mA, 5 mA
Current - Supply (Max)10mA, 10 mA
DescriptionIC REG LINEAR POS ADJ 1.
Detailed DescriptionLinear Voltage Regulato.
Digi-Key Part NumberLMS8117ADTX-ADJ/NOPBTR-.
Input voltage2.5...15V
Kind of packagereel,
Kind of voltage regulat.adjustable,
Lead Free Status / RoHS.RoHS Compliant
ManufacturerTexas Instruments
Manufacturer Part NumberLMS8117ADTX-ADJ/NOPB
Manufacturer Product Nu.LMS8117ADTX-ADJ/NOPB
Manufacturer Standard L.8 Weeks, 6 Weeks
MfrTexas Instruments
MountingSMD
Mounting TypeSurface Mount
Number of channels1
Number of Regulators1
Operating Temperature0, 0?C ~ 125?C
Operating temperature0...125?C
Output ConfigurationPositive
Output current1A
Output TypeAdjustable
Output voltage1.27...13.8V
PackageTape & Reel (TR)
Package / CaseTO-252-3, DPak (2 Leads.
PackagingReel
Product StatusActive
Protection FeaturesOver Current, Over Temp.
PSRR60 ~ 75 dB (120Hz)
Series-
Standard Package2,500
Supplier Device PackageTO-252-3
Tolerance?3%
Type of integrated circ.voltage regulator
Voltage - Input (Max)15V
Voltage - Output (Max)13.8V
Voltage - Output (Min/F.1.25V
Voltage drop1.25V
Voltage Dropout (Max)1.25V @ 1A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsLMS8117ADTX-ADJ/NOPB0.555005000Texas Instruments0.55 @ 500
HotendaH27895690.55021181Texas Instruments0.5502 @ 1
TMELMS8117ADTXADJNOPB1.28178TEXAS INSTRUMENTS1.28 @ 1
thumbzoomDigi-Key18723051.63178Texas Instruments1.63 @ 1
