brand:
manufacturer:
Description:

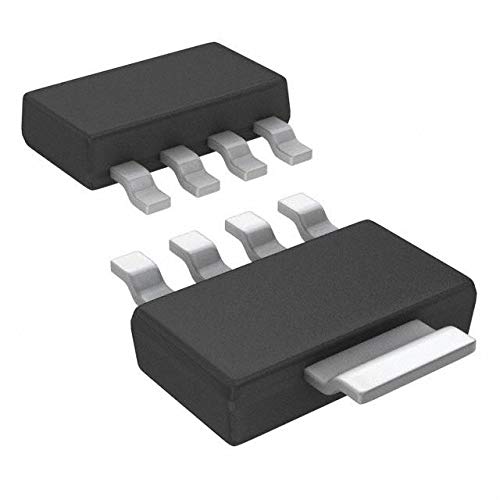

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-5
Preferred Price:
4.15
Price:
4.15
Min Simple Price:
1.54
Absolute Min Price:
3.31
Min Price:
3.31
qty:
1948
simpleSku:
MDYxNQ:::LP38693MP-5.0/NOPB
sku:
MDYxNQ::2G:LP38693MP-5.0/NOPB@y0
condition:
11
seller:
Component Electronics
amzMan:
texas instruments
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 926-38693MP-5.0/NOPB |
| Base Product Number, Series | LP38693 |
| Brand, Manufacturer, Mfr | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 ?A |
| Current - Supply (Max) | 100 ?A |
| Description | IC REG LINEAR 5V 500MA SOT223-5 |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-5 |
| Digi-Key Part Number | LP38693MP-5.0/NOPBTR-ND - Tape & Reel (TR) |
| Dropout Voltage - Max | 450 mV |
| Input Voltage MAX | 10 V |
| Input Voltage MIN | 2.7 V |
| Line Regulation | 0.03 % |
| Load Regulation | 1.8 % |
| Manufacturer Part No., Manufacturer Product Number | LP38693MP-5.0/NOPB |
| Manufacturer Standard Lead Time | 6 Weeks |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 Output |
| Number of Regulators | 1 |
| Operating Temperature | -40?C ~ 125?C |
| Output Configuration | Positive |
| Output Current | 500 mA |
| Output Type | Fixed |
| Output Voltage | 5 V |
| Output Voltage Tolerance | 4 % |
| Package | Tape & Reel (TR) |
| Package / Case | TO-261-5, TO-261AB |
| Package/Case, Supplier Device Package | SOT-223-5 |
| Packaging | Reel |
| Product | Low Dropout CMOS Linear Regulator |
| Product Category | LDO Voltage Regulators |
| Product Status | Active |
| Protection Features | Over Temperature |
| PSRR | 55dB (120Hz) |
| PSRR / Ripple Rejection - Typ | 55 dB |
| Series, Voltage - Output (Max) | - |
| Type | Low Dropout Linear Regulator |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.45V @ 500mA |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Component Electronics | LP38693MP-5.0/NOPB-T | 1.54 | 1.54 | 1 | 3 | Texas Instruments | 1.54 @ Qty: 1+ | ||
 | Digi-Key | 755081 | 1.78 | 1.78 | 1 | 60201 | Texas Instruments | 1.78 @ Qty: 1+ | ||
 | Newark | 28AH3745 | 2.04 | 2.04 | 1 | 375 | TEXAS INSTRUMENTS | 2.04 @ Qty: 1+ | ||
 | swatee.com | LP38693MP-5.0/NOPB | 3.33 | 3.33 | 1 | 1948 | Texas Instruments | 3.33 @ Qty: 1+ |
