Texas Instruments LP3966ES-1.8/NOPB

B00AZVA3QU

LP3966ES-1.8/NOPB

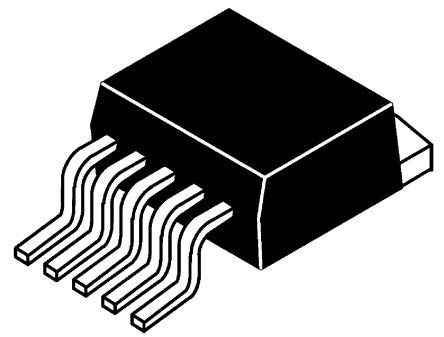

LP3966ES-1.8/NOPBzoom

Attributes

Key Value
Accuracy?1.5%
Base Product NumberLP3966
CategoryIntegrated Circuits (IC.
Control FeaturesEnable
Current - Output3A
Current - Quiescent (Iq)9 mA
Current - Supply (Max)15 mA
Dimensions10.16 x 8.64 x 4.57mm
EnableYes
Height4.57mm
Length10.16mm
Line Regulation0.02 %
Load Regulation0.06 %
Maximum Input Voltage7 V
Maximum Operating Tempe.+125 ?C
Maximum Output Current3A
MfrTexas Instruments
Minimum Input Voltage2.5 V
Minimum Operating Tempe.-40 ?C
Mounting TypeSurface Mount
Number of Outputs1
Number of Regulators1
Operating Temperature-40?C ~ 125?C
Output ConfigurationPositive
Output TypeFixed
Output Voltage1.8 V
PackageTube
Package / CaseTO-263-6, D?Pak (5 Lead.
Package TypeD2PAK (TO-263)
Part StatusActive
Pin Count5
PolarityPositive
Protection FeaturesOver Current, Over Temp.
PSRR-
Series-
Supplier Device PackageDDPAK/TO-263-5
Voltage - Input (Max)7V
Voltage - Output (Max)-
Voltage - Output (Min/F.1.8V
Voltage Dropout (Max)1.2V @ 3A
Width8.64mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH27900894.721In StockTexas Instruments4.72 @ 1
TMELP3966ES-1.8/NOPB6.381In StockTEXAS INSTRUMENTS6.38 @ 1
RS Delivers648-1095P8.581125Texas Instruments8.58 @ 1
Digi-Key1347554618.731135Texas Instruments18.73 @ 1
