TEXAS INSTRUMENTS PTH05050WAD-TEXAS INSTRUMENTS

B018CODR6E

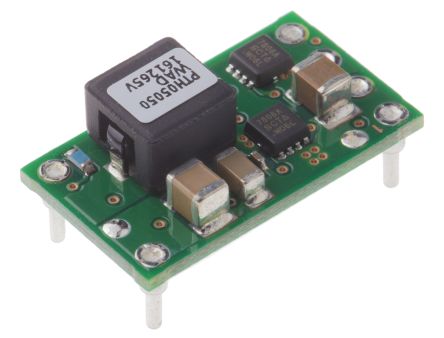

TEXAS INSTRUMENTS PTH05050WAD Non Isolated Board Mount DC/DC Converter, POLA, DIP, 21.6 W, 800 mV, 3.6 V, 6 A, 4.5 V

TEXAS INSTRUMENTS PTH05050WAD Non Isolated Board Mount DC/DC Converter, POLA, DIP, 21.6 W, 800 mV, 3.6 V, 6 A, 4.5 Vzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberPTH05050
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)6A
Dimensions22.1 x 12.57 x 8.25mm
Efficiency95%
Features-
Height8.25mm
Length22.1mm
Maximum Operating Tempe.+85 ?C
MfrTexas Instruments
Minimum Operating Tempe.-40 ?C
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
PackageTray
Package / Case6-DIP Module
Package TypeDIP Module
Pin Count6
Product StatusActive
SeriesPTH05050W
Size / Dimension0.87" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.8 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-
Width12.57mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key157671713.981In StockTexas Instruments13.98 @ 1
thumbzoomRS Delivers661-790415.8161In StockTexas Instruments15.816 @ 1
thumbzoomNewark64AH796320.631In StockTEXAS INSTRUMENTS20.63 @ 1
