TEXAS INSTRUMENTS PTH05050WAH-TEXAS INSTRUMENTS

B018COE3NK

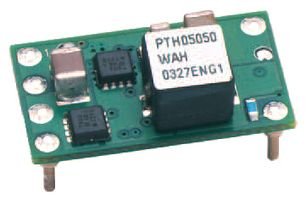

TEXAS INSTRUMENTS PTH05050WAH IC, NON-ISOL ADJ PWR MOD, 600KHZ

TEXAS INSTRUMENTS PTH05050WAH IC, NON-ISOL ADJ PWR MOD, 600KHZzoom

Attributes

Key Value
Alternate Part No.595-PTH05050WAH
ApplicationsITE (Commercial)
Base Product NumberPTH05050
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)6A
DescriptionDC DC CONVERTER 0.8-3.6.
Detailed DescriptionNon-Isolated PoL Module.
Digi-Key Part Number296-20414-ND
Efficiency95%
FeaturesUVLO
Input Voltage Range4.5 V to 5.5 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH05050WAH
Manufacturer Product Nu.PTH05050WAH
Manufacturer Standard L.12 Weeks
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current-Channel 16 A
Output Voltage-Channel 13.6 V
PackageBulk, Tray
Package / Case6-DIP Module
Package/Case SizeThrough Hole Module
PackagingTray
Part StatusActive
Power (Watts)21 W
ProductNon-Isolated / POL
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
SeriesPTH05050W, PTH05050W (2.
Size / Dimension0.87" L x 0.50" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.8 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourcePTH05050WAH10.6138896Texas Instruments10.61 @ 3
RS Delivers620-106317.6881122Texas Instruments17.688 @ 1
thumbzoomNewark28AH474520.631In StockTEXAS INSTRUMENTS20.63 @ 1
thumbzoomswatee.comPTH05050WAH23.061384Texas Instruments23.06 @ 1
thumbzoomDigi-Key81030826.1212055Texas Instruments26.12 @ 1
