SM74611KTTR

B00LVLF2AK

Diodes - General Purpose, Power, Switching Smart Bypass Diode

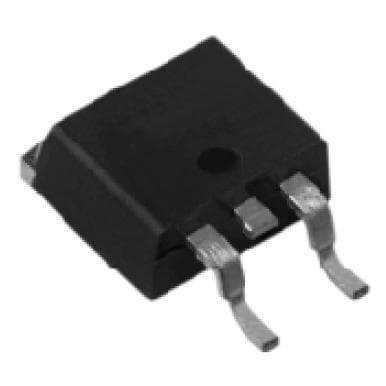

Diodes - General Purpose, Power, Switching Smart Bypass Diodezoom

Attributes

Key Value
Alternate Part No.595-SM74611KTTR
Base Product NumberSM74611
BrandTexas Instruments
Capacitance @ Vr, F-
CategoryDiscrete Semiconductor .
ConfigurationSingle
Current - Average Recti.15A
Current - Reverse Leaka.300 nA @ 28 V
Diode TypeStandard
ManufacturerTexas Instruments
Manufacturer Part No.SM74611KTTR
Maximum Operating Tempe.+ 125 C
Maximum Power Dissipati.575 mW
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Drivers1 Driver
Number of Outputs1 Output
Operating Temperature -.-40?C ~ 125?C
Output Current15 A
PackageTape & Reel (TR)
Package / CaseTO-263-3, D?Pak (2 Lead.
Package/CaseTO-263-3
PackagingReel
ProductMOSFET Gate Drivers
Product CategoryGate Drivers
Product StatusActive
SeriesSM74611, -
SpeedStandard Recovery >500n.
Supplier Device PackageDDPAK/TO-263-3
Supply Voltage - Max30 V
Supply Voltage - Min100 mV
TypeSmart Bypass Diode
Voltage - DC Reverse (V.30 V
Voltage - Forward (Vf) .26 mV @ 8 A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key39111553.137661100Texas Instruments3.13766 @ 100
thumbzoomNewark28AH48783.481100TEXAS INSTRUMENTS3.48 @ 100
thumbzoomswatee.comSM74611KTTR7.211492Texas Instruments7.21 @ 100
