Generic SN74ABT823DBR

B0992V2PTT

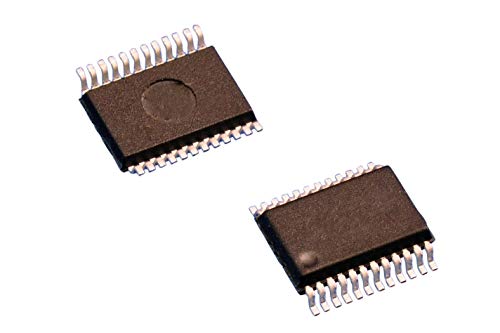

SN74ABT823DBR - Logic 24-Pins SSOP 74ABT823 (10 Piece Lot)

SN74ABT823DBR - Logic 24-Pins SSOP 74ABT823 (10 Piece Lot)zoom

Attributes

Key Value
Base Product Number74ABT823
BrandTexas Instruments
CaseSSOP24
CategoryIntegrated Circuits (IC.
Clock Frequency200 MHz
Current - Output High, .32mA, 64mA
Current - Quiescent (Iq)250 ?A
Dimensions8.5 x 5.6 x 1.95mm
FamilyABT
FunctionMaster Reset
Height1.95mm
Input Capacitance4 pF
Input TypeInput Type
Kind of integrated circ.D flip-flop
Kind of output3-state
Kind of packagereel,
Length8.5mm
Logic FamilyLogic Family
Logic FunctionLogic Function
ManufacturerTexas Instruments
Max Propagation Delay @.4.4ns @ 5V, 50pF
Maximum Operating Suppl.Maximum Operating Suppl.
Maximum Operating Tempe.+85 ?C
Maximum Propagation Del.6.8ns
MfrTexas Instruments
Minimum Operating Suppl.4.5 V
Minimum Operating Tempe.Minimum Operating Tempe.
MountingSMD
Mounting TypeSurface Mount
Number of Bits per Elem.9
Number of channels9
Number of Elements1
Number of Elements per .9
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
Output Signal TypeSingle Ended
Output TypeTri-State, Non-Inverted.
PackageTape & Reel (TR)
Package / Case24-SSOP (0.209", 5.30mm.
Package TypeSSOP
Pin CountPin Count
PolarityPolarity
Product StatusActive
Propagation Delay Test .Propagation Delay Test .
Quiescent current38mA
Series74ABT
Set/ResetMaster Reset
StockStock
Supplier Device Package24-SSOP
TechnologyBiCMOS,
Trigger TypePositive Edge
Triggering TypePositive Edge
TypeD-Type
Type of integrated circ.digital
Voltage - Supply4.5V ~ 5.5V
Width5.6mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH25360910.945110Texas Instruments0.945 @ 10
thumbzoomRS Delivers732-11711.0872510Texas Instruments1.0872 @ 10
Digi-Key134806661.1751127819526610Texas Instruments1.17511278195 @ 266
TMESN74ABT823DBR1.82533110TEXAS INSTRUMENTS1.82533 @ 10
Bristol ElectronicsSN74ABT823DBR1.875110TI1.875 @ 10
