Texas Instruments SN74HC682N

9827173103

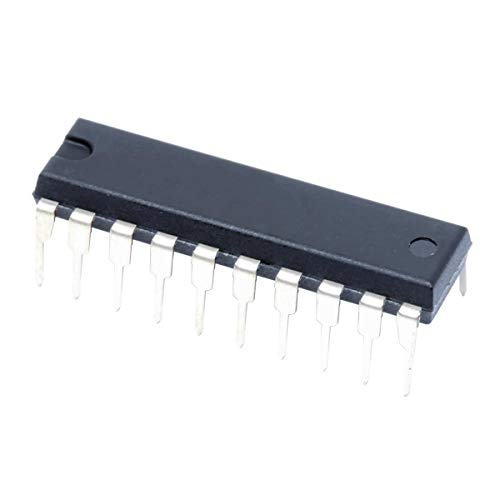

Texas Instruments SN74HC682N 8 Bit Identity Comparator 2-6V 4mA 20 Pin

Texas Instruments SN74HC682N 8 Bit Identity Comparator 2-6V 4mA 20 Pinzoom

Attributes

Key Value
Base Part Number 74HC682
CaseDIP20
Categories Integrated Circuits (I.
Current - Output High, . 5.2mA, 5.2mA
Enable (Y/N)No
Lead Free Status / RoHS. Lead free / RoHS Compl.
ManufacturerTexas Instruments
Manufacturer Part Number SN74HC682N
Manufacturer Standard L. 6 Weeks
Max Propagation Delay @. 47ns @ 6V, 50pF
Moisture Sensitivity Le. 1 (Unlimited)
Mounting Type Through Hole
No. of Pins20
Nom. Supp Volt5.0
Number of Bits 8
Oper. Temp (?C) Max.85
Oper. Temp (?C) Min-40
Operating Temperature -40?C ~ 85?C
Output Active Low
Output Function A=B, A>B
Package / Case 20-DIP (0.300", 7.62mm.
Packaging Tube
Pinout Equivalence Numb.20-3
Series 74HC
SKU445394
Standard Package20
Surface Mounted Yes/NoNo
Tech.CMOS Integrated Circuit
tPD Max. (S)344n
TypeSemiConductor, Magnitu.
Voltage - Supply 2V ~ 6V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsSN74HC682N2.61748129Texas Instruments2.61748 @ 1
iodPartsSN74HC682N3.4611003600Texas Instruments3.461 @ 100
HotendaH24942404.37122Texas Instruments4.37 @ 1
RadwellSN74HC682N4.45122TEXAS INSTRUMENTS SEMI4.45 @ 1
Little DiodeSN74HC682N5.933128514TI5.9331285 @ 1
Digi-Key37683317.561In Stocktexas-instruments17.56 @ 1
