Texas Instruments SN74LV74APWR

B011NN020U

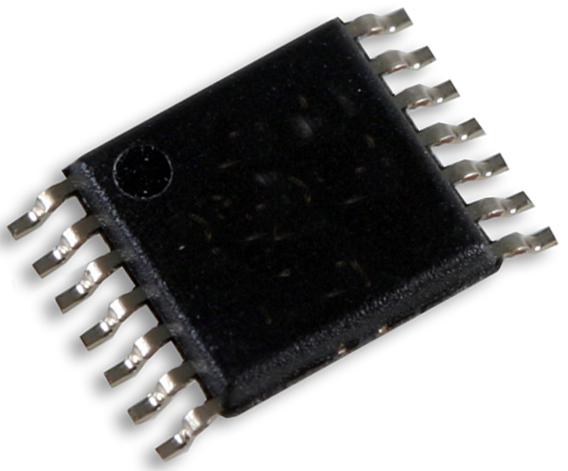

TEXAS INSTRUMENTS SN74LV74APWR IC, D-TYPE FLIP FLOP, DUAL, TSSOP-14

TEXAS INSTRUMENTS SN74LV74APWR IC, D-TYPE FLIP FLOP, DUAL, TSSOP-14zoom

Attributes

Key Value
Alternate Part No.595-SN74LV74APWR
Base Product Number74LV74
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Clock Frequency140 MHz
Current - Output High, .12mA, 12mA
Current - Quiescent (Iq)20 ?A
FunctionSet(Preset) and Reset
High Level Output Curre.- 12 mA
Input Capacitance2 pF
Input TypeCMOS
Logic FamilyLV-A
Logic TypeD-Type Flip-Flop
Low Level Output Current12 mA
ManufacturerTexas Instruments
Manufacturer Part No.SN74LV74APWR
Max Propagation Delay @.9.3ns @ 5V, 50pF
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Bits per Elem.1
Number of Circuits2
Number of Elements2
Number of Input Lines2
Number of Output Lines2
Operating Temperature-40?C ~ 125?C (TA)
Output TypeCMOS, Complementary
PackageTape & Reel (TR)
Package / Case14-TSSOP (0.173", 4.40m.
Package/CaseTSSOP-14
PackagingReel
PolarityInverting/Non-Inverting
Product CategoryFlip-Flops
Product StatusActive
Propagation Delay Time20 ns
SeriesSN74LV74A, 74LV
Supplier Device Package14-TSSOP
Supply Voltage - Max5.5 V
Supply Voltage - Min2 V
Trigger TypePositive Edge
TypeD-Type
Unit Weight57.200 mg
Voltage - Supply2V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceSN74LV74APWR0.0775501370Texas Instruments0.077 @ 1
HotendaH25340230.110551904Texas Instruments0.11055 @ 1
thumbzoomRadwellSN74LV74APWR0.144000904TEXAS INSTRUMENTS SEMI1.00.14 @ 4000
thumbzoomNewark33AH49680.621161TEXAS INSTRUMENTS0.62 @ 1
Digi-Key7487760.621182Texas Instruments0.62 @ 1
RS Delivers662-85470.65761182Texas Instruments0.6576 @ 1
thumbzoomswatee.comSN74LV74APWR0.911022Texas Instruments0.9 @ 1
thumbzoomComponent Electronics74LV74APWR-TI21.15160Texas Instruments1.15 @ 1
