Texas Instruments SN74LVC2G02YZPR

SN74LVC2G02YZPR

SN74LVC2G02YZPRzoom

Attributes

Key Value
Alternate Part No.595-SN74LVC2G02YZPR
Base Product Number74LVC2G02
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Current - Output High, .32mA, 32mA
Current - Quiescent (Ma.10 ?A
DescriptionIC GATE NOR 2CH 2-INP 8.
Detailed DescriptionNOR Gate IC 2 Channel 8.
Digi-Key Part Number296-18799-2-ND - Tape &.
Features-
High Level Output Curre.- 32 mA
Input Logic Level - High1.7V ~ 2V
Input Logic Level - Low0.7V ~ 0.8V
Logic Family74LVC
Logic TypeNOR Gate
Low Level Output Current32 mA
ManufacturerTexas Instruments
Manufacturer Part No.SN74LVC2G02YZPR
Manufacturer Product Nu.SN74LVC2G02YZPR
Manufacturer Standard L.6 Weeks
Max Propagation Delay @.4.4ns @ 5V, 50pF
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Circuits2
Number of Gates2 Gate
Number of Input Lines2
Number of Inputs2
Number of Lines In/Out2 / 1
Number of Output Lines1
Operating Temperature-40?C ~ 125?C (TA)
PackageTape & Reel (TR)

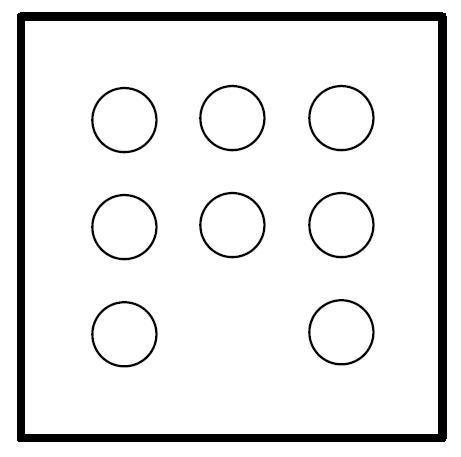

Package / Case8-XFBGA, DSBGA
Package/CaseDSBGA-8
PackagingReel
ProductNOR
Product CategoryLogic Gates
Product StatusActive
Propagation Delay Time4.9 ns
SeriesSN74LVC2G02, 74LVC
Supplier Device Package8-DSBGA (1.9x0.9)
Supply Voltage - Max5.5 V
Supply Voltage - Min1.65 V
Unit Weight2.300 mg
Voltage - Supply1.65V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH25442760.247951403Texas Instruments0.24795 @ 1
RadwellSN74LVC2G02YZPR0.293000403TEXAS INSTRUMENTS SEMI0.29 @ 3000
thumbzoomswatee.comSN74LVC2G02YZPR1.0513705Texas Instruments1.05 @ 1
thumbzoomDigi-Key86363313.116167233Texas Instruments13.116 @ 1
