Generic SN74LVC2G132DCTR

mpnSN74LVC2G132DCTR
brandname: Texas Instruments
manufacturername: Texas Instruments

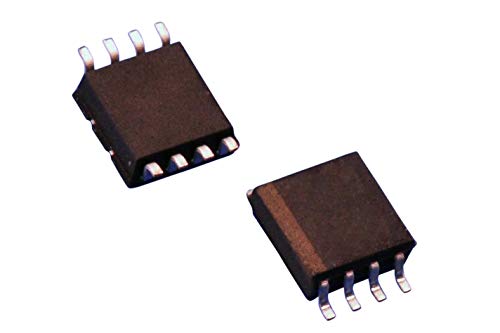

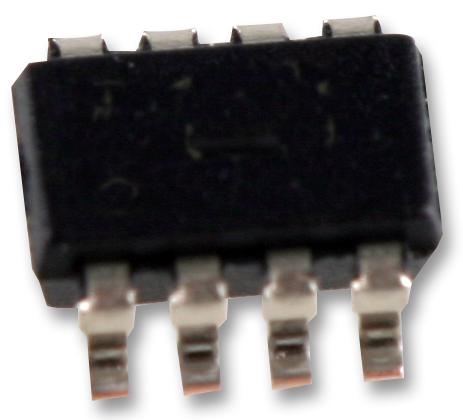

SN74LVC2G132DCTR - Logic 8-Pins SSOP 74LVC2G132 (100 Piece Lot)

SN74LVC2G132DCTR - Logic 8-Pins SSOP 74LVC2G132 (100 Piece Lot)

zoom

Brand: Generic
PartNumber: SN74LVC2G132DCTR
Model: SN74LVC2G132DC
Binding: Electronics
Manufacturer: Texas Instruments Incorporated
Label: Texas Instruments Incorporated

Attributes

Key	Value
Base Product Number	74LVC2G132
Case	SM8
Category	Integrated Circuits (IC.
Current - Output High, .	32mA, 32mA
Current - Quiescent (Ma.	10 ?A
Family	74LVC
Features	Schmitt Trigger
Kind of gate	NAND
Kind of input	with Schmitt trigger
Kind of package	reel,
Logic Level - High	1.16V ~ 3.33V
Logic Level - Low	0.39V ~ 1.87V
Logic Type	NAND Gate
Manufacturer	Texas Instruments
Max Propagation Delay @.	5ns @ 5V, 50pF
Mfr	Texas Instruments
Mounting	SMD
Mounting Type	Surface Mount
Number of channels	dual,
Number of Circuits	2
Number of Inputs	2
Number of inputs	2
Operating Temperature	-40?C ~ 125?C
Operating temperature	-40...125?C
Package	Tape & Reel (TR)
Package / Case	8-LSSOP, 8-MSOP (0.110".
Product Status	Active
Quiescent current	10?A
Series	74LVC
Supplier Device Package	SM8
Technology	CMOS
Type of integrated circ.	digital
Voltage - Supply	1.65V ~ 5.5V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2543660	0.24795	1	100		Texas Instruments		0.24795 @ 100
	TME	SN74LVC2G132DCTR	0.448	1	1148		TEXAS INSTRUMENTS		0.448 @ 100
	Digi-Key	1946392	0.4613	1	829		Texas Instruments		0.4613 @ 100
	Newark	34AH2719	0.551	1	100		TEXAS INSTRUMENTS		0.551 @ 100
	Radwell	SN74LVC2G132DCTR	0.85	1	100		TEXAS INSTRUMENTS SEMI		0.85 @ 100
