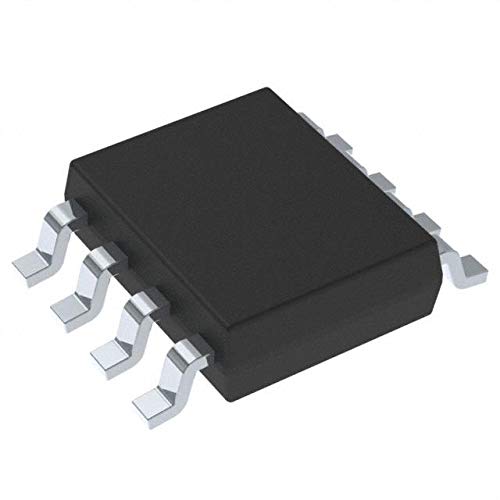

Texas Instruments THS4631DDA

B005TBGXHE

THS4631DDA

THS4631DDAzoom

Attributes

Key Value
-3db Bandwidth325 MHz
Alternate Part No.595-THS4631DDA
Amplifier TypeVoltage Feedback, Gener.
Base Product NumberTHS4631
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.86 dB
Current - Input Bias50 pA
Current - Output / Chan.98 mA
Current - Supply11.5mA
DescriptionIC OPAMP GP 1 CIRC 8SOP.
Detailed DescriptionGeneral Purpose Amplifi.
Digi-Key Part Number296-17674-5-ND
Gain Bandwidth Product210 MHz
GBP - Gain Bandwidth Pr.210 MHz
Ib - Input Bias Current100 pA
ManufacturerTexas Instruments
Manufacturer Part No.THS4631DDA
Manufacturer Product Nu.THS4631DDA
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels1 Channel
Number of Circuits1
Operating Supply Voltage33 V
Operating Temperature-40?C ~ 85?C
Output Type-
PackageTube
Package / Case8-PowerSOIC (0.154", 3..
Package/CaseHSOP-8
PackagingTube
Pd - Power Dissipation2300 mW
ProductOperational Amplifiers
Product CategoryHigh Speed Operational .
Product StatusActive
PSRR - Power Supply Rej.85 dB
SeriesTHS4631, -
Slew Rate1000V/?s
SR - Slew Rate1000 V/us
Supplier Device Package8-SO PowerPad
Supply Current per Chan.13 mA
Supply Voltage - Max30 V
Supply Voltage - Min10 V
TopologyVoltage Feedback
Voltage - Input Offset260 ?V
Voltage - Supply Span (.30 V
Voltage - Supply Span (.10 V
Voltage Gain dB80 dB
Vos - Input Offset Volt.0.5 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RadwellTHS4631DDA7.05150In StockTEXAS INSTRUMENTS SEMI7.05 @ 150
thumbzoomNewark28AH53168.861In StockTEXAS INSTRUMENTS8.86 @ 1
HotendaH251336910.471In StockTexas Instruments10.47 @ 1
RS Delivers814-401013.788136Texas Instruments13.788 @ 1
thumbzoomswatee.comTHS4631DDA17.571356Texas Instruments17.57 @ 1
thumbzoomDigi-Key71645619.511655Texas Instruments19.51 @ 1
