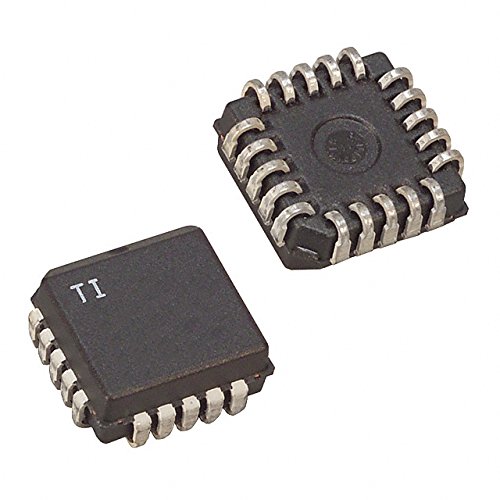

Texas Instruments TLC1541CFN

B005T9O7DS

TLC1541CFN

TLC1541CFNzoom

Attributes

Key Value
ArchitectureSAR
Base Part NumberTLC1541
Base Product NumberTLC154
CasePLCC20
CategoryIntegrated Circuits (IC.
ConfigurationMUX-S/H-ADC
Data InterfaceSPI
DescriptionIC ADC 10BIT SAR 20PLCC
Detailed Description10 Bit Analog to Digita.
Digi-Key Part Number296-2873-5-ND
FeaturesSelectable Address
Input TypeSingle Ended
Lead Free Status / RoHS.RoHS Compliant
Logic Level FamilyTTL
ManufacturerTexas Instruments
Manufacturer Part NumberTLC1541CFN
Manufacturer Product Nu.TLC1541CFN
MfrTexas Instruments
Mounting TypeSurface Mount
No. of Pins20
Nom. Pos. Supp5.0
Number of A/D Converters1
Number of Bits10
Number of Inputs11
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Temperature0?C ~ 70?C, 0
Outp Arith. CodeA
PackageTube
Package / Case20-LCC (J-Lead)
PackagingTube
Pinout Equivalence Numb.20-438
Product StatusObsolete
Ratio - S/H:ADC1:1
Reference TypeExternal
Sampling Rate (Per Seco.32k
Series-
SKU942490
Standard Package46
Supplier Device Package20-PLCC (9x9)
Surface Mounted Yes/NoYES
t(conv) (S)21u
Tech.CMOS Integrated Circuit
TypeSemiconductor
Vin Range (Vp-p)5.0
VOH Min.2.4
VOL Max.0.4
Volt or Cur. ModeVoltage
Voltage - Supply, Analog5V
Voltage - Supply, Digit.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsTLC1541CFN4.4829214260Texas Instruments4.482 @ 92
thumbzoomDigi-Key3717354.771818181826622893Texas Instruments4.77181818182 @ 66
HotendaH23627327.21In StockTexas Instruments7.2 @ 1
RadwellTLC1541CFN8.531In StockTEXAS INSTRUMENTS SEMI8.53 @ 1
Little DiodeTLC1541CFN29.71033651In StockTexas Instruments29.7103365 @ 1
