- mpnTLC254CN
- brandname: Texas Instruments
- manufacturername: Texas Instruments

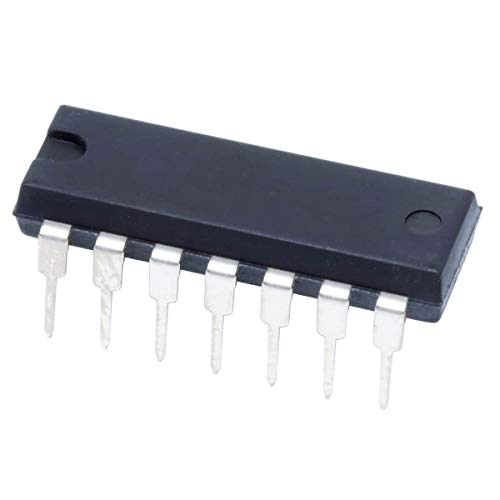

TLC254CN
- Brand: Texas Instruments
- PartNumber: TLC254CN
- Model: TLC254CN
- PackageQuantity: 1
- Manufacturer: Texas Instruments
- Label: Texas Instruments
Attributes
| Key | Value |
|---|
| Amplifier Type | General Purpose, CMOS |
| Base Part Number | TLC254 |
| Base Product Number | TLC254 |
| Case | DIP14 |
| Category | Integrated Circuits (IC. |
| Com Mode Inp Range (VIC. | 9.0 |
| Current - Input Bias | 0.7pA, 0.6 pA |
| Current - Supply | 4.5mA, 2.7mA (x4 Channe. |
| Descript | 1.4 to 16V supply volta. |
| Description | IC CMOS 4 CIRCUIT 14DIP |
| Detailed Description | CMOS Amplifier 4 Circui. |
| Digi-Key Part Number | 296-2907-5-ND |
| Gain Bandwidth Product | 2.2 MHz, 2.2MHz |
| I(io) Max. (A) | 1.0p- |
| Inp Bias Curr. Max. (A) | 1.0p- |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Texas Instruments |
| Manufacturer Part Number | TLC254CN |
| Manufacturer Product Nu. | TLC254CN |
| Manufacturer Standard L. | 6 Weeks |
| Mfr | Texas Instruments |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Oper. Temp (?C) Max. | 70 |
| Oper. Temp (?C) Min | 0 |
| Operating Temperature | 0?C ~ 70?C, 0 |
| Output Type | Open Drain |
| Package | Tube |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Packaging | Tube |
| PD Max. (W) | 1.15 |
| Pinout Equivalence Numb. | 14-240 |
| Product Status | Active |
| Series | LinCMOS, LinCMOS? |
| SKU | 76702 |
| Slew Rate | 5.3V/, 4.5V/?s |
| Standard Package | 25 |
| Supplier Device Package | 14-PDIP |
| Surface Mounted Yes/No | NO |
| Temp Coef. of VIO | 5.0u |
| Type | Integrated Circuit |
| Unity Gain BW (Hz) | 2.2M- |
| V(io) Max. (V) | 10.0m |
| Voltage - Input Offset | 1.1 mV, 1.1mV |
| Voltage - Supply Span (. | 16 V |
| Voltage - Supply Span (. | 1.4 V |
| Voltage - Supply, Singl. | 1.4V ~ 16V, |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | TLC254CN | 3.4 | 100 | 13700 | | Texas Instruments | | 3.4 @ 100 |
 | Digi-Key | 371769 | 4.55391304348 | 69 | 20875 | | Texas Instruments | | 4.55391304348 @ 69 |
| Hotenda | H2690914 | 6.23 | 1 | 134 | | Texas Instruments | | 6.23 @ 1 |
 | Radwell | TLC254CN | 6.54 | 125 | In Stock | | TEXAS INSTRUMENTS SEMI | 1.0 | 6.54 @ 125 |
| Little Diode | TLC254CN | 17.8217325 | 1 | 4 | | Texas Instruments | | 17.8217325 @ 1 |
