Generic TLV2254AID

B0992V1YNT

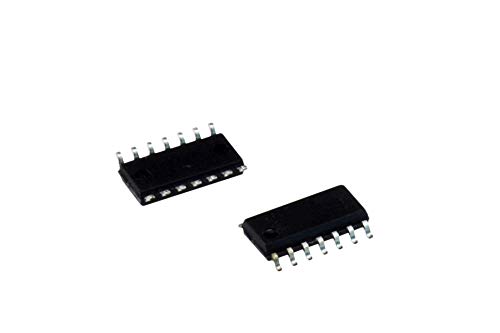

TLV2254AID - Linear 14 SOIC 2254 (10 Piece Lot)

TLV2254AID - Linear 14 SOIC 2254 (10 Piece Lot)zoom

Attributes

Key Value
Alternate Part No.595-TLV2254AID
Amplifier TypeGeneral Purpose, Low Po.
Base Product NumberTLV2254
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Current - Input Bias1 pA
Current - Output / Chan.50 mA
Current - Supply140?A (x4 Channels)
DescriptionIC OPAMP GP 4 CIRCUIT 1.
Detailed DescriptionGeneral Purpose Amplifi.
Digi-Key Part Number296-7437-5-ND
Dual Supply Voltage+/- 3 V
en - Input Voltage Nois.36 nV
Gain Bandwidth Product200 kHz
GBP - Gain Bandwidth Pr.0.2 MHz
Ib - Input Bias Current60 pA
ManufacturerTexas Instruments
Manufacturer Part No.TLV2254AID
Manufacturer Product Nu.TLV2254AID
Manufacturer Standard L.6 Weeks
Maximum Dual Supply Vol.+/- 4 V
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 1.35 V
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels4 Channel
Number of Circuits4
Operating Supply Voltage2.7 V to 8 V, +/- 1.35 .
Operating Temperature-40?C ~ 125?C
Output Current per Chan.50 mA
Output TypeRail-to-Rail
PackageTube
Package / Case14-SOIC (0.154", 3.90mm.
Package/CaseSOIC-14
PackagingTube
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
SeriesTLV2254A, LinCMOS?
ShutdownNo Shutdown
Slew Rate0.12V/?s
SR - Slew Rate0.12 V/us
Supplier Device Package14-SOIC
Supply Current per Chan.0.25 mA
Supply Voltage - Max8 V
Supply Voltage - Min2.7 V
TechnologyLinCMOS
Unit Weight133.400 mg
Voltage - Input Offset200 ?V
Voltage - Supply Span (.8 V
Voltage - Supply Span (.2.7 V
Vos - Input Offset Volt.850 uV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH25128512.951110Texas Instruments2.951 @ 10
thumbzoomNewark26AJ99805.04110TEXAS INSTRUMENTS5.04 @ 10
thumbzoomswatee.comTLV2254AID5.211165Texas Instruments5.21 @ 10
thumbzoomDigi-Key3749975.23311060Texas Instruments5.233 @ 10
