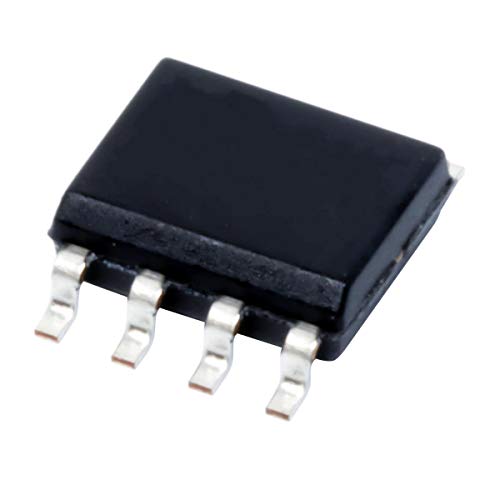

Texas Instruments TLV2432CDR

B00AZV96EK

TLV2432CDR

TLV2432CDRzoom

Attributes

Key Value
Alternate Part No.595-TLV2432CDR
Amplifier TypeCMOS, Low Power Amplifi.
ASINB00AZV96EK
Base Product NumberTLV2432
Batteries Required?No
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Current - Input Bias1 pA
Current - Output / Chan.50 mA
Current - Supply100?A (x2 Channels)
DescriptionIC CMOS 2 CIRCUIT 8SOIC
Detailed DescriptionCMOS Amplifier 2 Circui.
Digi-Key Part Number296-31970-2-ND - Tape &.
Dual Supply Voltage+/- 3 V
en - Input Voltage Nois.100 nV
Gain Bandwidth Product550 kHz
GBP - Gain Bandwidth Pr.0.55 MHz
Ib - Input Bias Current300 pA
Item Package Quantity1
ManufacturerTexas Instruments
Manufacturer Part No.TLV2432CDR
Manufacturer Product Nu.TLV2432CDR
Manufacturer Standard L.8 Weeks
Maximum Dual Supply Vol.+/- 5 V
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 1.35 V
Minimum Operating Tempe.0 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels2 Channel
Number of Circuits2
Operating Supply Voltage2.7 V to 10 V, +/- 1.35.
Operating Temperature0?C ~ 70?C (TA)
Output Current per Chan.50 mA
Output TypeRail-to-Rail
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm .
Package/CaseSOIC-8
PackagingReel
Part NumberTLV2432CDR
Part StatusActive
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
SeriesTLV2432, LinCMOS?, Auto.
ShutdownNo Shutdown
Slew Rate0.25V/?s
SR - Slew Rate0.25 V/us
Supplier Device Package8-SOIC
Supply Current per Chan.0.25 mA
Supply Voltage - Max10 V
Supply Voltage - Min2.7 V
TechnologyLinCMOS
Unit Weight72.600 mg
Voltage - Input Offset300 ?V
Voltage - Supply Span (.10 V
Voltage - Supply Span (.2.7 V
Voltage - Supply, Singl.2.7V ~ 10V, ?1.35V ~ 5V
Vos - Input Offset Volt.2 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH25122930.7021100Texas Instruments0.702 @ 100
thumbzoomRadwellTLV2432CDR0.922500100TEXAS INSTRUMENTS SEMI1.00.92 @ 2500
thumbzoomDigi-Key16775111.32471100Texas Instruments1.3247 @ 100
thumbzoomswatee.comTLV2432CDR3.1911498Texas Instruments3.19 @ 100
AmazonSCB00AZV96EK3.61100Texas Instruments3.6 @ 100
