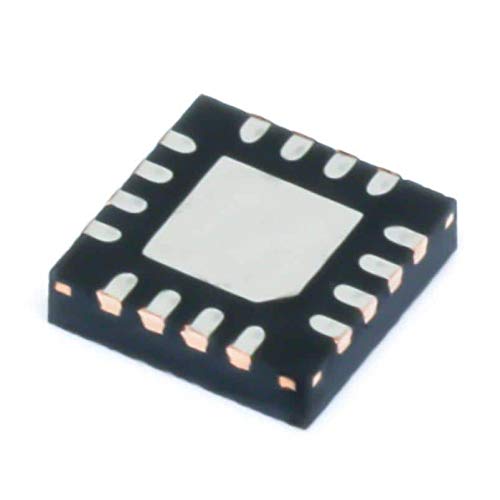

Texas Instruments TPS55010RTER

B00AZV9BH2

TPS55010RTER

TPS55010RTERzoom

Attributes

Key Value
Alternate Part No.595-TPS55010RTER
Base Product NumberTPS55010
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Current - Output-
Frequency - Switching100kHz ~ 2MHz
FunctionStep-Up/Step-Down
Input Voltage2.95 V to 6 V
Input Voltage MAX6 V
Input Voltage MIN2.95 V
ManufacturerTexas Instruments
Manufacturer Part No.TPS55010RTER
Maximum Operating Tempe.+ 150 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1, 2 Output
Operating Temperature-40?C ~ 150?C (TJ)
Operating Temperature R.- 40 C to + 150 C
Output ConfigurationPositive or Negative, I.
Output Current400 mA
Output TypeAdjustable
Output Voltage3.3 V to 20 V
PackageTape & Reel (TR)
Package / Case16-WFQFN Exposed Pad
Package/CaseWQFN-16
PackagingReel
Product CategoryVoltage Regulators - Sw.
Product StatusActive
SeriesTPS55010, -
Supplier Device Package16-WQFN (3x3)
Switching Frequency500 kHz
Synchronous RectifierYes
TopologyBuck, Flyback, Flyback
TypeConverter (Integrated S.
Voltage - Input (Max)6V
Voltage - Input (Min)2.98V
Voltage - Output (Max)20V
Voltage - Output (Min/F.3.3V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowTPS55010RTER2.09411880Texas Instruments2.094 @ 1
Mouser595-TPS55010RTER2.2215968Texas Instruments2.22 @ 1
thumbzoomNewark27AJ05632.78135TEXAS INSTRUMENTS2.78 @ 1
thumbzoomswatee.comTPS55010RTER6.0111632Texas Instruments6.01 @ 1
Digi-Key268128714.806135Texas Instruments14.806 @ 1
