TEXAS INSTRUMENTS TPS55010RTET-TEXAS INSTRUMENTS

B008RFLAHC

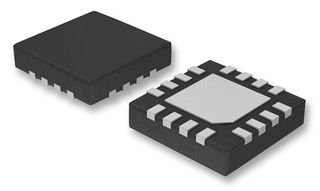

TEXAS INSTRUMENTS TPS55010RTET DCDC, REG, 2W, ISO, 16WQFN (1 piece)

TEXAS INSTRUMENTS TPS55010RTET DCDC, REG, 2W, ISO, 16WQFN (1 piece)zoom

Attributes

Key Value
Base Part NumberTPS55010
Base Product NumberTPS55010
CategoryIntegrated Circuits (IC.
Converter TypeFlyback, Step Down
Current - Output-
Dimensions3.15 x 3.15 x 0.75mm
Frequency - Switching100kHz ~ 2MHz
FunctionStep-Up/Step-Down
Height0.75mm
Lead Free Status / RoHS.RoHS Compliant
Length3.15mm
Manufacturer Part NumberTPS55010RTET
Manufacturer Standard L.20 Weeks
Maximum Input Voltage6 V
Maximum Operating Tempe.+150 ?C
Maximum Output Current100mA
Maximum Output Voltage-5 V, 20 V
Maximum Switching Frequ.2 MHz
MfrTexas Instruments
Minimum Input Voltage2.95 V
Minimum Operating Tempe.-40 ?C
Minimum Output Voltage-20 V, 5 V
Mounting TypeSurface Mount
Number of Outputs1, 2
Operating Temperature-40?C ~ 150?C (TJ), -40
Output ConfigurationPositive or Negative, I.
Output TypeAdjustable
PackageTape & Reel (TR)
Package / Case16-WFQFN Exposed Pad
Package TypeWQFN
PackagingReel
Pin Count16
Product StatusActive
Series-
Standard Package250
Supplier Device Package16-WQFN (3x3)
Switching RegulatorYes
Synchronous RectifierYes
TopologyFlyback
Voltage - Input (Max)6V
Voltage - Input (Min)2.98V
Voltage - Output (Max)20V
Voltage - Output (Min/F.3.3V
Width3.15mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsTPS55010RTET1.2062502250Texas Instruments1.206 @ 250
RS Delivers162-64601.374187Texas Instruments1.374 @ 1
ArrowTPS55010RTET2.1331255Texas Instruments2.133 @ 1
Mouser595-TPS55010RTET2.55194Texas Instruments2.55 @ 1
Digi-Key268839515.3695129Texas Instruments15.3695 @ 1
