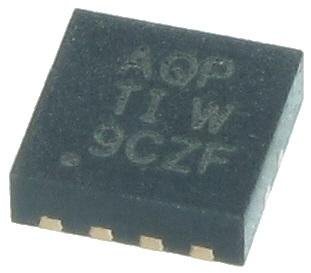

Texas Instruments TPS61060DRBR

B005T6LYBE

TPS61060DRBR

TPS61060DRBRzoom

Attributes

Key Value
Alternate Part No.595-TPS61060DRBR
ApplicationsBacklight
Base Product NumberTPS61060
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Current - Output / Chan.400mA (Switch)
DescriptionIC LED DRVR RGLTR PWM 4.
Detailed DescriptionLED Driver IC 1 Output .
Digi-Key Part Number296-17500-2-ND - Tape &.
DimmingPWM
Frequency1MHz
High Level Output Curre.0.06 A
Input Voltage2.7 V to 6 V
Internal Switch(s)Yes
ManufacturerTexas Instruments
Manufacturer Part No.TPS61060DRBR
Manufacturer Product Nu.TPS61060DRBR
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 85 C
Maximum Supply Current1 mA
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1, 1 Output
Operating Frequency1 MHz
Operating Temperature-40?C ~ 85?C (TA)
Output Current400 mA
Output TypeConstant Current
PackageTape & Reel (TR)
Package / Case8-VDFN Exposed Pad
Package/CaseVSON-8
PackagingReel
Part StatusActive
Product CategoryLED Lighting Drivers
Product StatusActive
SeriesTPS61060, -
Supplier Device Package8-SON (3x3)
TopologyBoost, Step-Up (Boost)
TypeInductive, DC DC Regula.
Unit Weight24 mg
Voltage - Output14.5V
Voltage - Supply (Max)6V
Voltage - Supply (Min)2.7V
Width3 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceTPS61060DRBR0.25120102266Texas Instruments0.25 @ 120
HotendaH26682690.8032513000Texas Instruments0.80325 @ 1
Newark54Y87951.48167TEXAS INSTRUMENTS1.48 @ 1
thumbzoomswatee.comTPS61060DRBR3.212435Texas Instruments3.2 @ 1
thumbzoomDigi-Key69849113.59124599Texas Instruments13.59 @ 1
